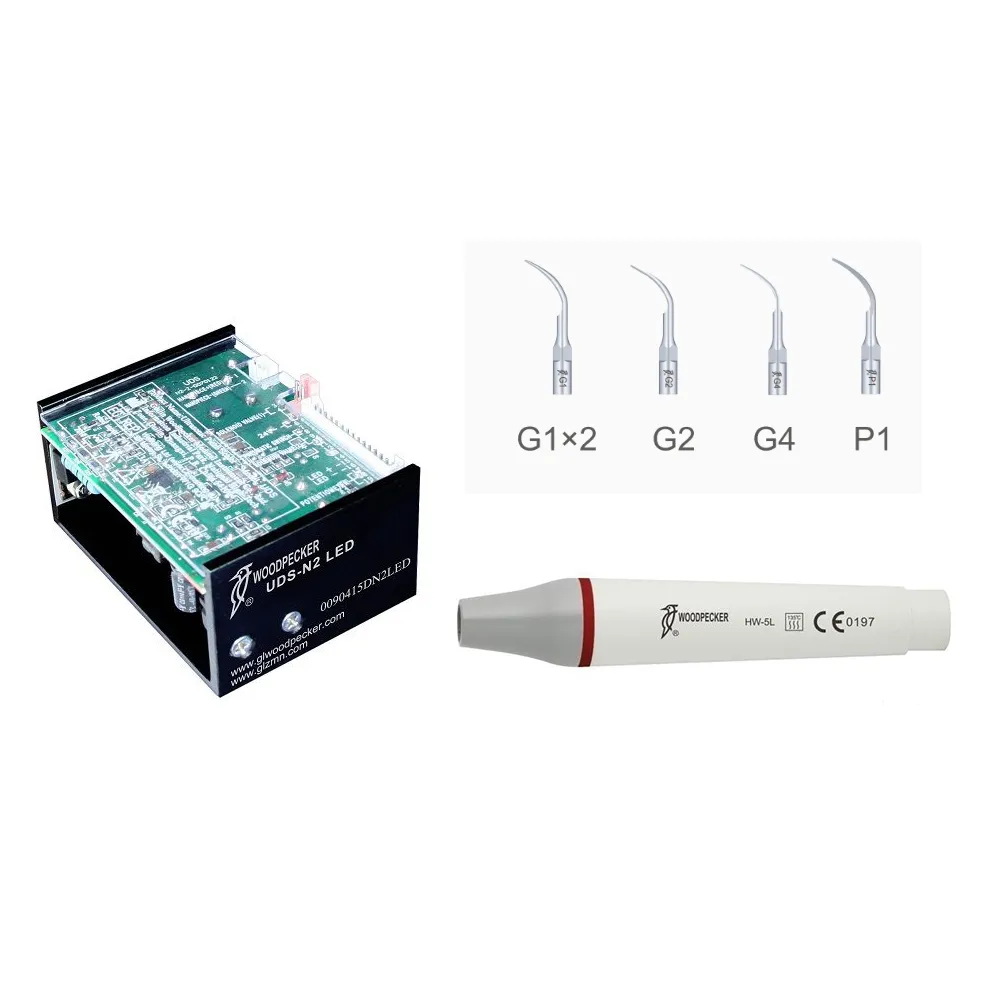

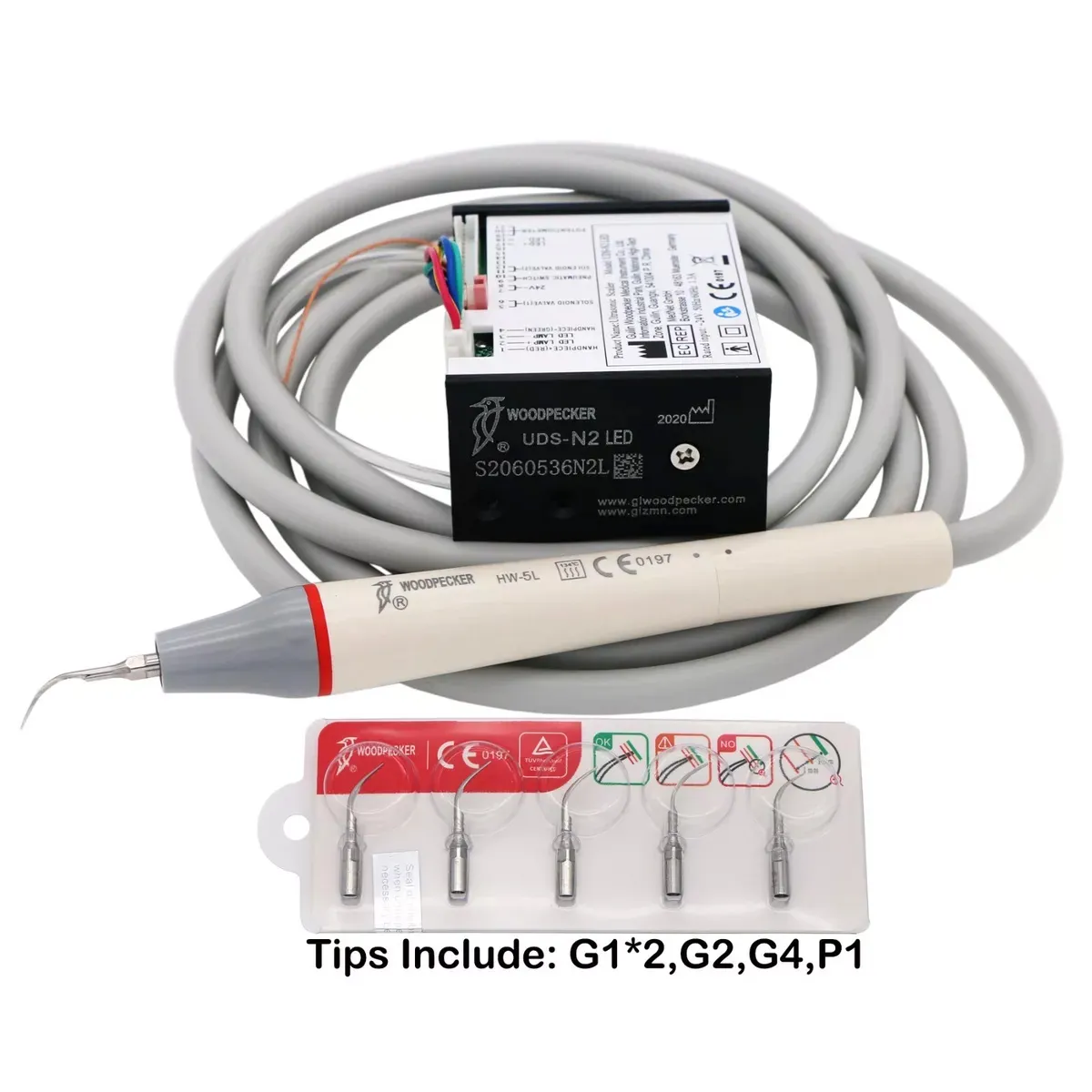

WOODPECKER UDS - N2 LED (Ultrasonic Scaler)

1. 1 x Main Unit

2. 1 x Handpiece

3. 5 x Tips (2xG1,1xG2,1xG4,1xP1)

4. 1 x Cable

5. 1 x Torque Wrench

6. 1 x Water Pipe

7. 1 x Potentiometer Knob

8. 1 x Potentiometer and Electronic Pipe

9. 1 x Cutting Sleeve For Handpiece

10. 6 x Waterproof "O" Ring

11. 3 x Handpiece Decorative Ring

12. 1 x Two Sided Adhesive Foam

13. 3 x Nylon Cable Tie

14. 1 x Packaging List

15. 1 x Instruction Manual

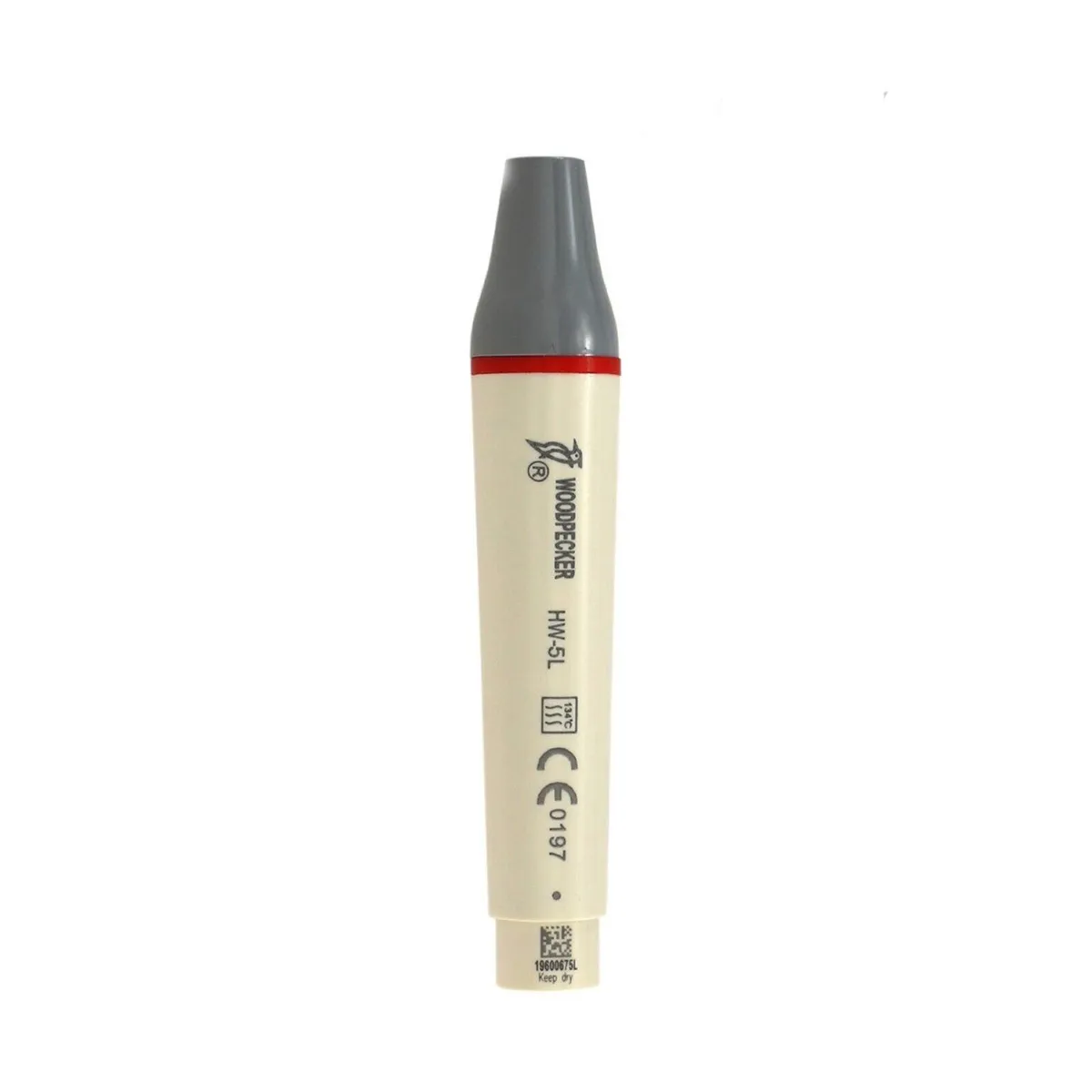

1. LED-Illuminated Handpiece: Equipped with a detachable fiber-optic handpiece that provides 8,000 lux illumination, improving visibility during procedures.

2. Autoclavable Handpiece: The handpiece is autoclavable up to 135°C and 0.22MPa, ensuring high standards of hygiene.

3. High-Quality Piezo-Ceramic: Utilizes excellent piezo-ceramic components for consistent performance and minimal heat generation

4. Automatic Frequency Tracking: Maintains optimal frequency for stable and efficient scaling.

5. Wide Amplitude Adjustment: Offers a broader range of amplitude adjustments compared to previous models.

6. CE and FDA Certified: Complies with international safety and quality standards.

 Specifications

1. Input Power: 24V~, 50/60Hz, 1.3A

2. Output Power: 3W to 20W

3. Frequency: 28kHz ± 3kHzWater Pressure: 0.01MPa to 0.5MPa

4. Main Unit Dimensions: 74mm × 56mm × 38mm

5. Main Unit Weight: 0.2kg

6. Handpiece Illumination: 8,000 luxHandpiece Material: Titanium alloy

7. Sterilization: Autoclavable up to 135°C and 0.22MPa

1. 5-Year Warranty on the PCB (Power Circuit Board) from the date of invoice.

    12-Month Warranty on all other parts of the product, excluding physical damage.
