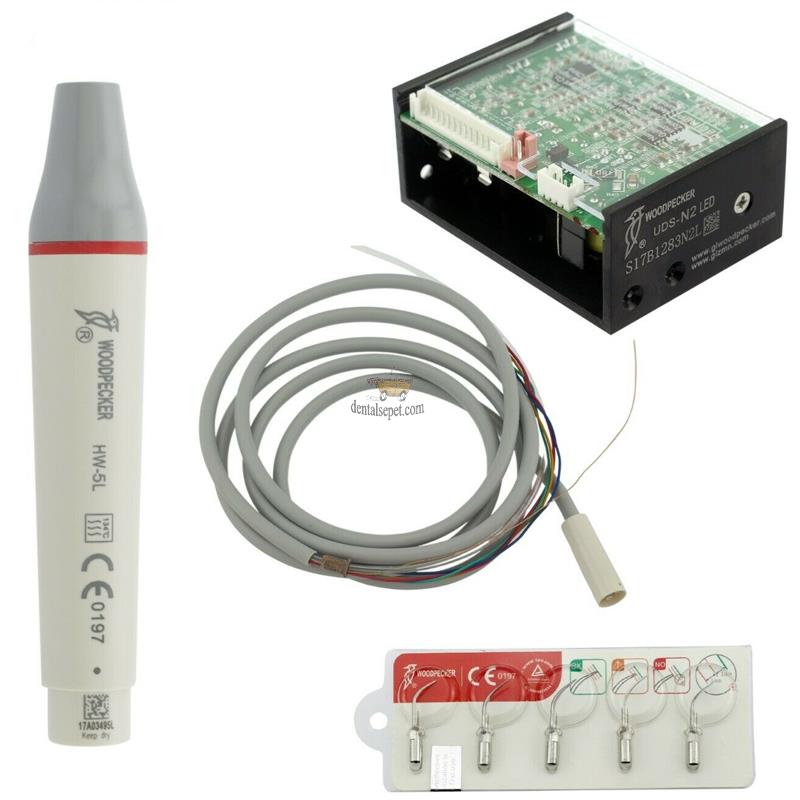

WOODPECKER UDS - N2 LED (Ultrasonic Scaler)

• 1 x Main Unit
• 1 x Handpiece
• 5 x Tips (2xG1,1xG2,1xG4,1xP1)
• 1 x Cable
• 1 x Torque Wrench
• 1 x Water Pipe
• 1 x Potentiometer Knob
• 1 x Potentiometer and Electronic Pipe
• 1 x Cutting Sleeve For Handpiece
• 6 x Waterproof "O" Ring
• 3 x Handpiece Decorative Ring
• 1 x Two Sided Adhesive Foam
• 3 x Nylon Cable Tie
• 1 x Packaging List
• 1 x Instruction Manual

• LED-Illuminated Handpiece: Equipped with a detachable fiber-optic handpiece that provides 8,000 lux illumination, improving visibility during procedures.

• Autoclavable Handpiece: The handpiece is autoclavable up to 135°C and 0.22MPa, ensuring high standards of hygiene.

• High-Quality Piezo-Ceramic: Utilizes excellent piezo-ceramic components for consistent performance and minimal heat generation

• Automatic Frequency Tracking: Maintains optimal frequency for stable and efficient scaling.

• Wide Amplitude Adjustment: Offers a broader range of amplitude adjustments compared to previous models.

• CE and FDA Certified: Complies with international safety and quality standards.

 Specifications

• Input Power: 24V~, 50/60Hz, 1.3A

• Output Power: 3W to 20W

• Frequency: 28kHz ± 3kHzWater Pressure: 0.01MPa to 0.5MPa

• Main Unit Dimensions: 74mm × 56mm × 38mm

• Main Unit Weight: 0.2kg

• Handpiece Illumination: 8,000 luxHandpiece Material: Titanium alloy

• Sterilization: Autoclavable up to 135°C and 0.22MPa

• 5-Year Warranty on the PCB (Power Circuit Board) from the date of invoice.
   12-Month Warranty on all other parts of the product, excluding physical damage.
