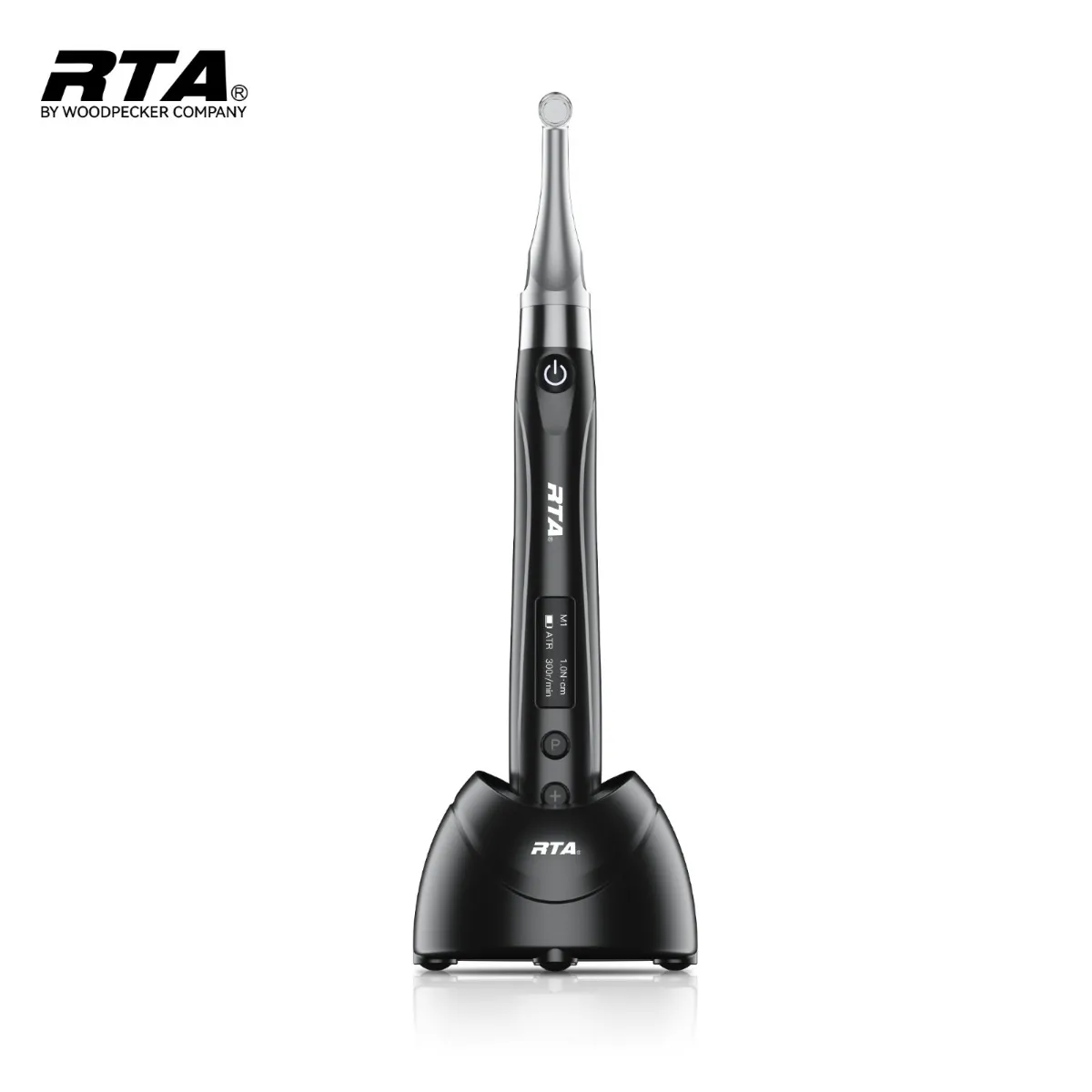

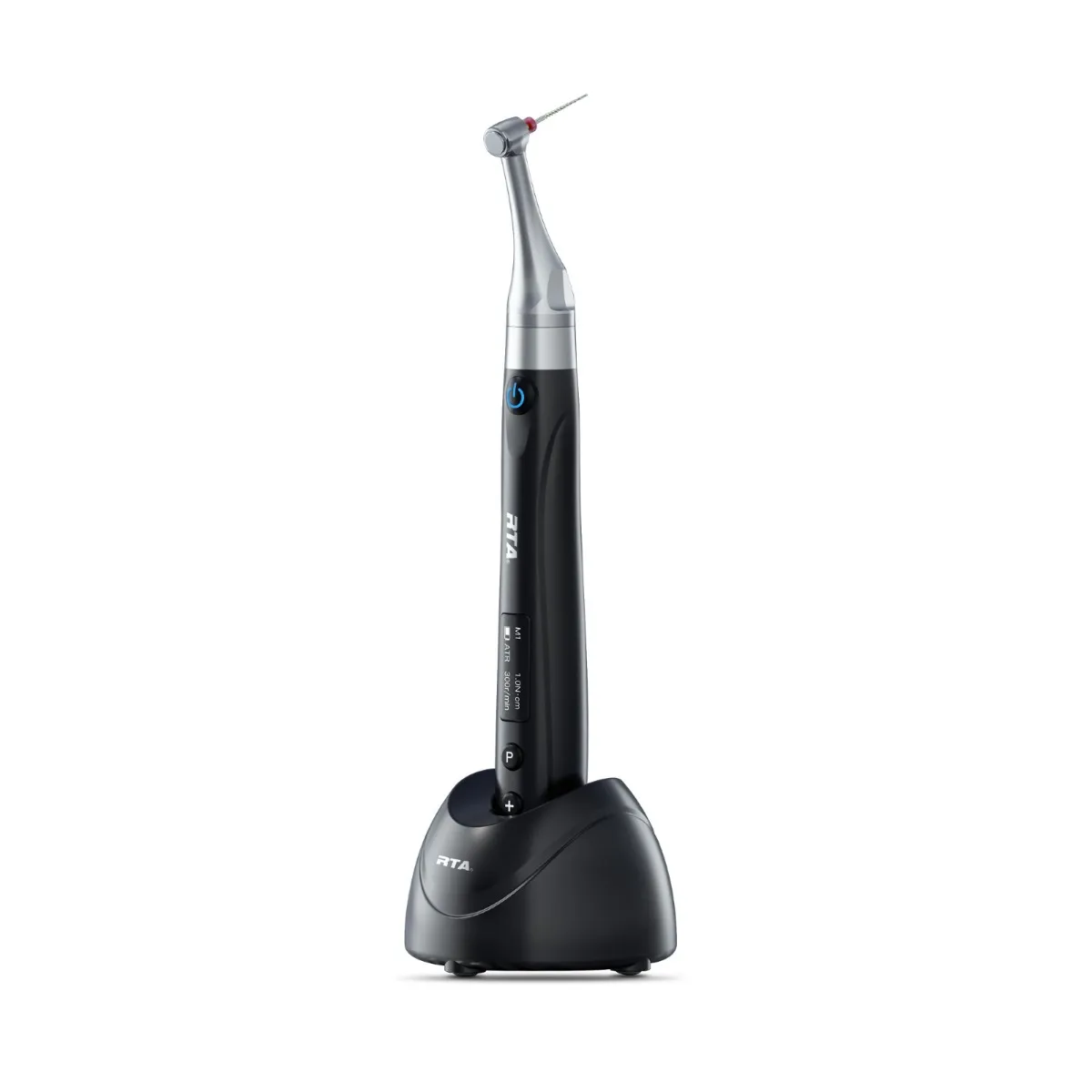

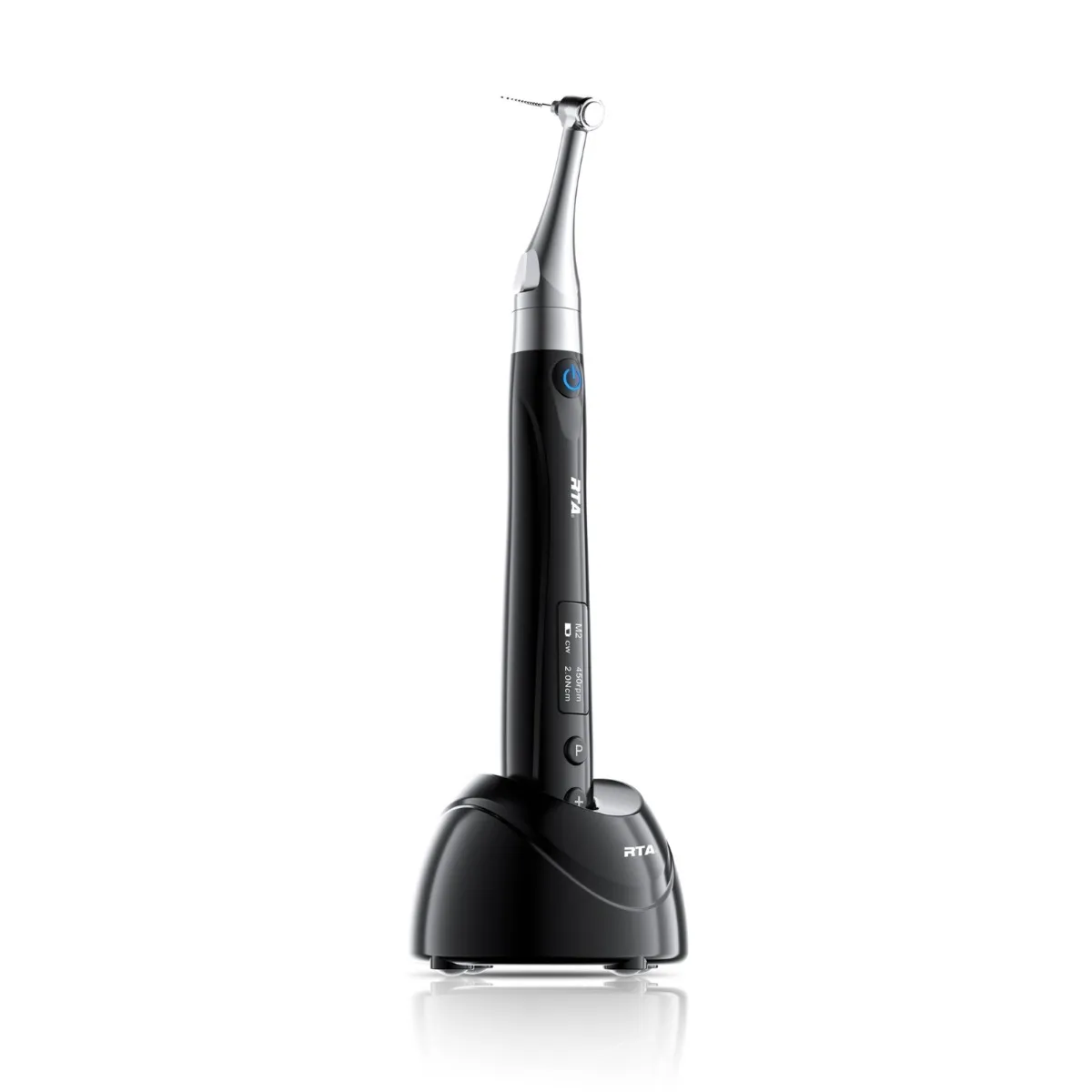

Woodpecker RTA MiniMotor Brushless Endomotor

• 1 X Base

• 1 X Motor Handpiece

• 1 X Contra angle head

• 1 X Spray nozzle

• 1X Adapter

• 1 X Disposable insulation sleeves

• 2 X Protective silicone cover

• 1 X Cable

• 1 X Qualified Certificate

• 1 x Packaging list

• 2 x O Rings

• 1 X Instruction Manual

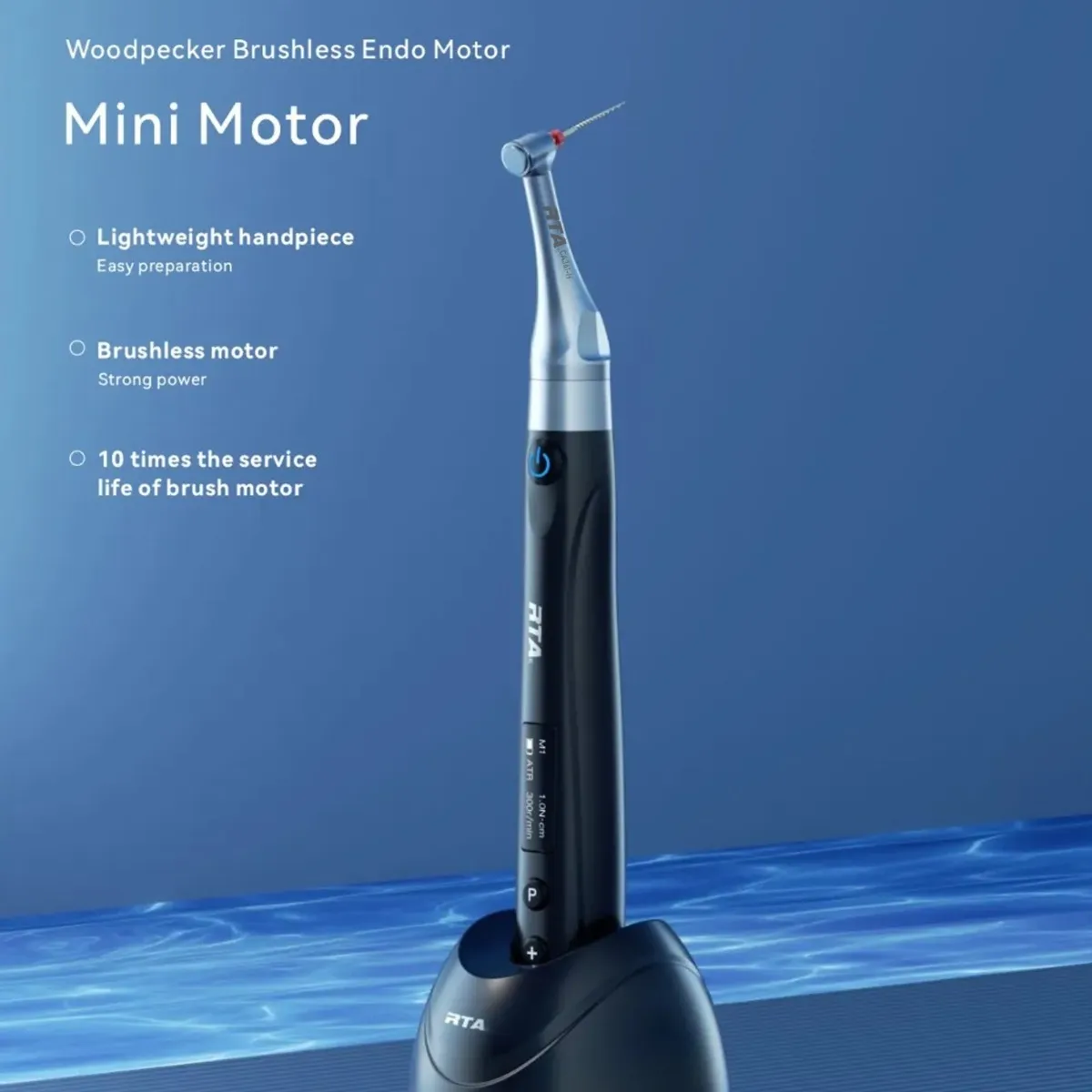

1. High-performance brushless motor for strong power.

2. Extended service life, 10 times longer.

3. Low wear and heat for durability.

4. Adjustable reciprocating angle for precision.

5. Compact 6:1 contra-angle for flexibility.

6. Wireless, cordless operation for convenience.

7. Four working modes for versatile use.

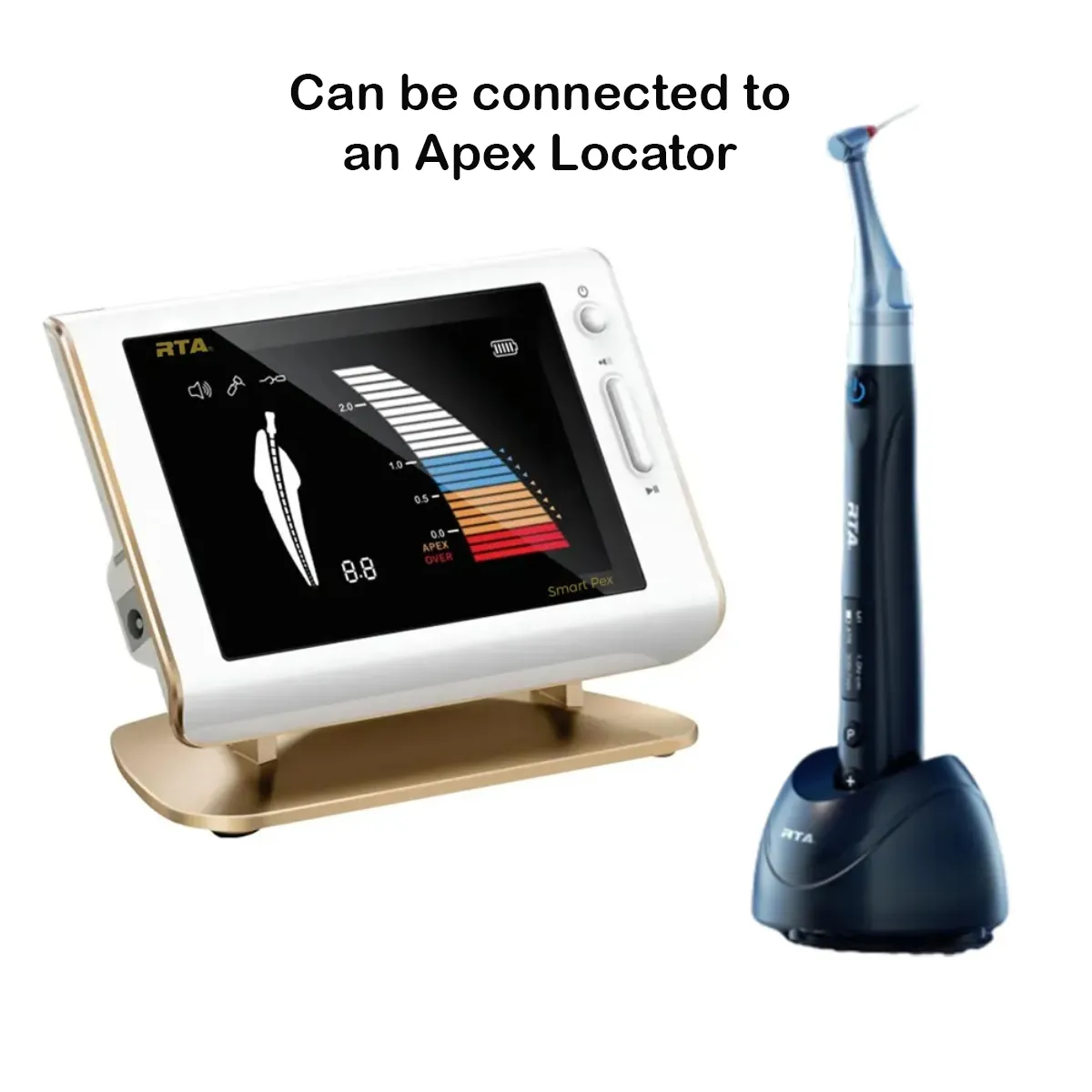

8. Apex Locator compatible for enhanced accuracy.

1. Motor Type: Brushless motor

2. Speed Range: 100r/min - 1500r/min

3. Torque Range: 0.4N·cm - 4.2N·cm

4. Service Life: 10 times longer than brush motors

5. Rotation: Smoother, lower noise

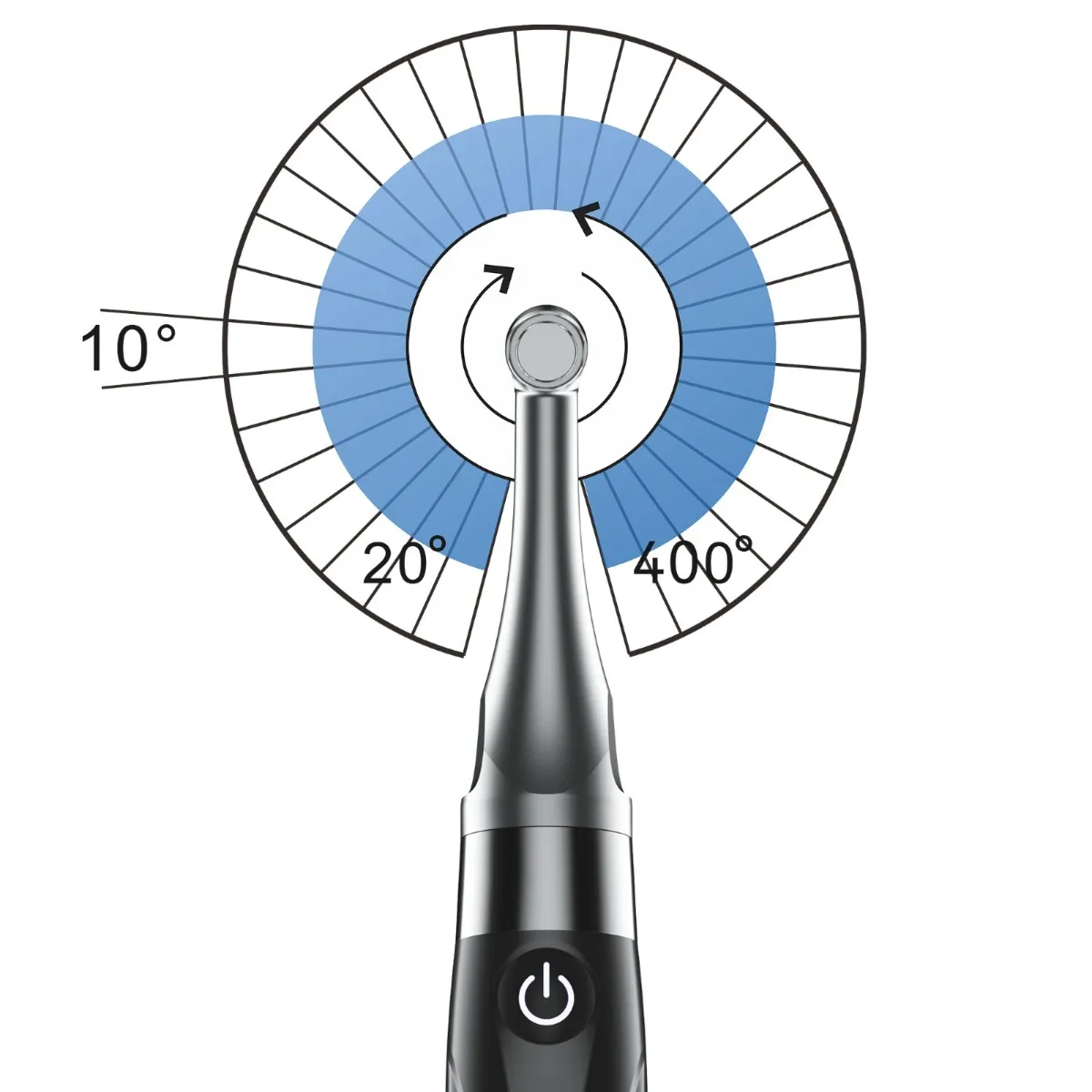

6. Adjustable Reciprocating Angle: 10° intervals

7. Forward & Reverse Reciprocating Angle: 20° - 400°

8. Speed Ratio: 6:1

9. Head Height: 9.7mm

10. Head Diameter: 8mm

11. Neck Diameter: 6mm

12. Contra-angle Rotation: 360° rotatable

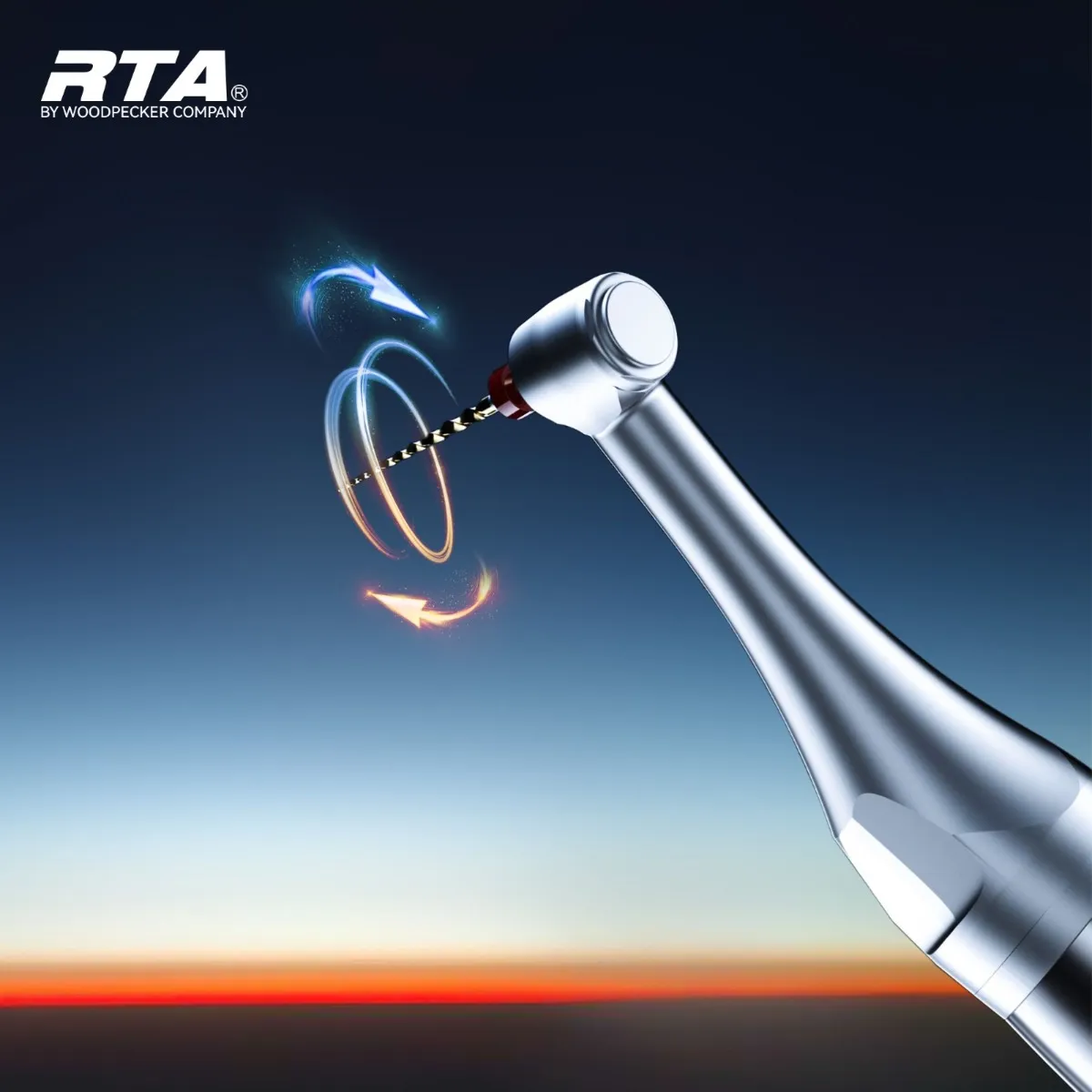

13. Working Modes: Forward, Reverse, Reciprocating, ATR

14. Control: Wireless

15. Operation Field: Broader with 6:1 speed ratio

16. Apex Locator Compatibility: Yes

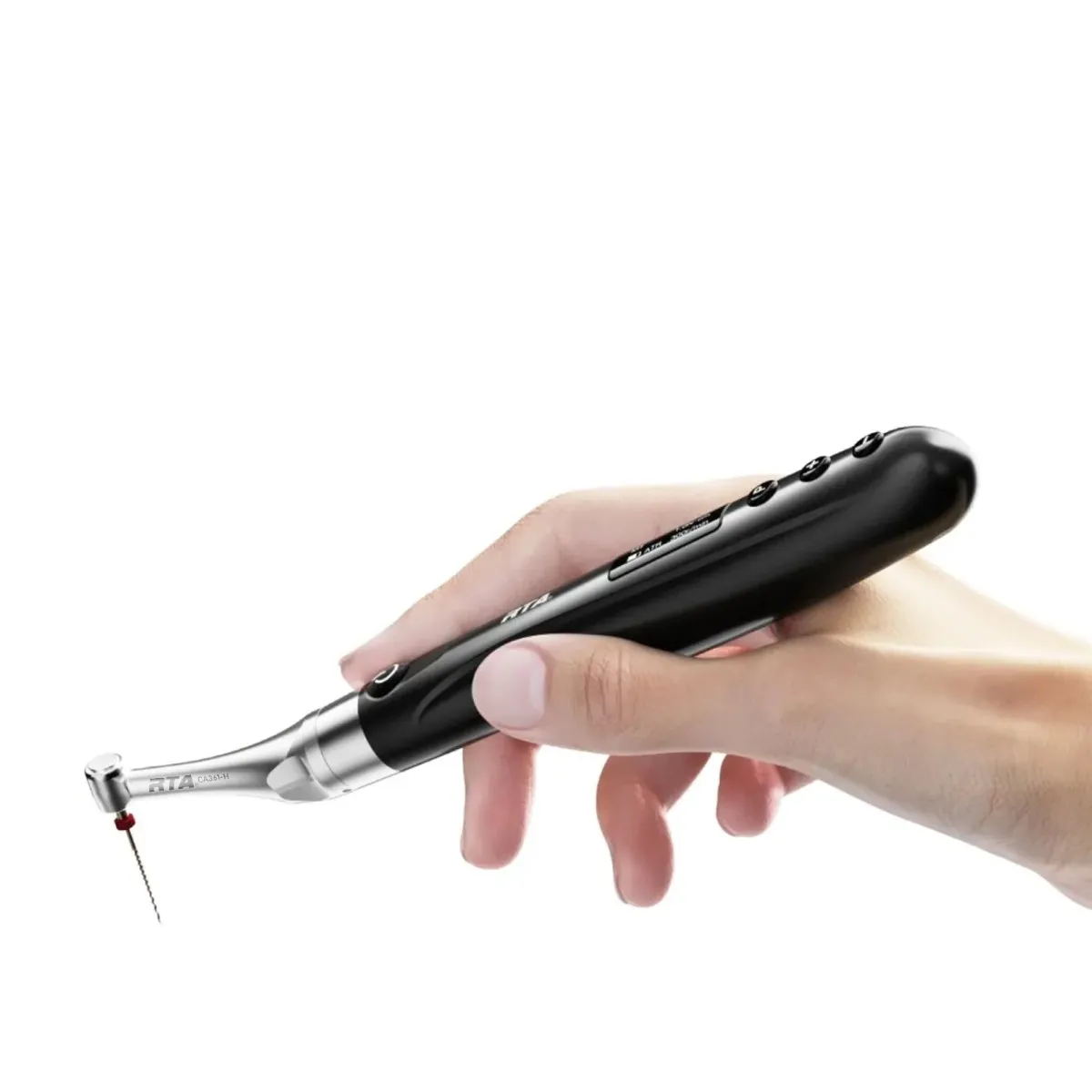

17. Design: Lightweight, cordless, well-balanced

18. Preparation Efficiency: High torque and fast response

19. Safety Features: Accurate angle control, reduced instrument separation risk.

20. Battery: Lithium battery in motor handpiece: 3.6V / 850mAh

21. Power adapter
    Input: ~100V-240V 50Hz/60Hz 0.4A Max
    Output: DC5V/1A

22. Atmospheric pressure: 70kPa ~ 106kPa

Preparation:

• Ensure the handpiece is fully charged before use.

• Connect the handpiece to the Apex Locator if needed.

Assembly:

• Attach the 6:1 mini contra-angle to the handpiece securely.

• Insert the desired file into the contra-angle head.

Power On:

• Press the power button to turn on the handpiece.

• Select the desired working mode (Forward, Reverse, Reciprocating, ATR) using the mode selector.

Speed and Torque Settings:

• Adjust the speed between 100r/min to 1500r/min as required for the procedure.

• Set the torque between 0.4N·cm to 4.2N·cm according to the specific needs of the preparation.

Reciprocating Angle Adjustment:

• • Use the adjustment control to set the reciprocating angle within the range of 20° to 400°.

  • Adjust in 10° intervals for precise control.

• Operation:

• Position the handpiece at the desired tooth location.

• Use the well-balanced design and 360° rotatable contra-angle for better maneuverability and accessibility.

• Apply gentle pressure and allow the high torque motor to perform the cutting.

Safety:

• Monitor the torque and speed settings to ensure they remain within safe limits.

• In ATR mode, the file will reciprocate at the set angle after reaching the preset torque, reducing the risk of instrument separation.

Post-Procedure:

• Turn off the handpiece and detach the contra-angle.

• Clean and sterilize the handpiece and contra-angle according to the manufacturer's guidelines.

Storage:

• Store the handpiece in a clean, dry place.

• Ensure the handpiece is fully charged before storing to maintain battery health.
