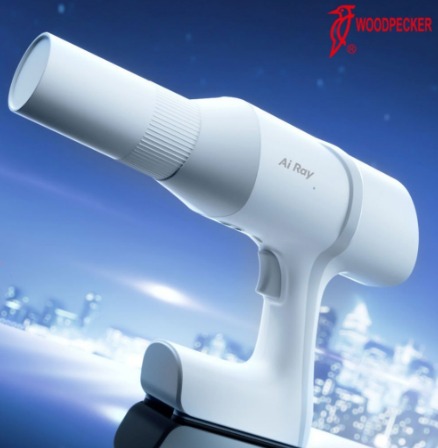

WOODPECKER Ai - Ray (Portable X Ray Device)

Availability : In stock

Brand : WOODPECKER

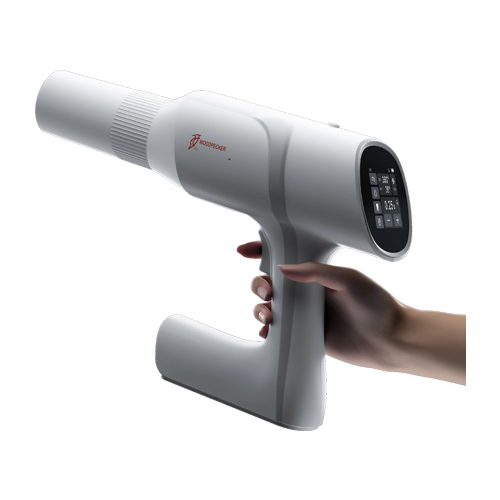

Portable X Ray Device Handheld Intraoral X-ray Unit with long battery life And Acurate Exposure.

₹ 79,500 ₹ 92,400 14% off

The Woodpecker Ai Ray Portable X-Ray Machine is a highly efficient and reliable dental imaging device that utilizes advanced technology to capture high-quality X-ray images of teeth.
With its compact and portable design, it offers convenience and flexibility for dental professionals to perform X-ray procedures in various clinical settings.
The Woodpecker Ai Ray Portable X-Ray Machine is designed with user-friendly features that simplify operation and enhance workflow efficiency.
Its intuitive control panel and interface make it easy for dental professionals to navigate through settings, select appropriate exposure times, and capture images with precision.
This innovative X-ray machine employs X-ray radiation to penetrate dental structures, allowing for precise and detailed imaging of teeth, surrounding tissues, and bone structures.
The resulting images provide crucial diagnostic information for dentists to assess oral health conditions, detect dental issues, and develop appropriate treatment plans.

Clinical Benefits :

High efficiency for sharp radiography gives high-quality images.
Non-invasive diagnostic imaging equipment takes care of the patient’s safety to radiation exposure.
All X-rays are compatible with IOPA Film and RVG leading to the convenience of operations.

Manufacturer/Importer warranty of 1 Year as applicable for this product
Warranty does not apply against any physical damage to the product
Service and Warranty are handled by the manufacturer/importer directly for this product

Installation area

Take out all the parts from the packing box. Be careful not to drop or damage the equipment.

Power adapter installation

Take out the power adapter and power line from the packing box and connect them. Only the power adapter and power line provided with the equipment can be used.

Operation instruction

The user of the medical device must comply with the requirements of the relevant operating regulations and relevant regulations of the medical department, and is limited to the use of trained doctors or technicians.

Preparation before shooting :

Turn on the Dental X-ray power switch, and the LCD screen lights up, accompanied by a beeper "di" sound prompt
Check the battery of the equipment to ensure the normal operation of the equipment
Select the human body, tooth position, and the equipment mode
Adjust the exposure time. The system has a default exposure time, or adjust the shooting time as required
Prepare film or image plate scanner (IP image plate) or Digital Intraoral X-ray Imaging System (sensor).

Shooting images :

High-quality equipment of image receptors (film or IP image plate or sensor) in a sealed protective bag will be put in the patient's mouth, parallel to the longitudinal axis of the tooth. The effective surface of the equipment of the image receptor is facing the tooth;
Move the Dental X-Ray Device to the teeth on the patient's face and adjust the position of the equipment and the patient according to the angle displayed on the screen;
Ensure that the light cone of the equipment of the image receptor is perpendicular to the position of the IP image plate, press the X-ray machine shooting switch; the exposure key should be pressed for the whole process until the "di" sound prompt of the beeper occurs;
When the exposure is finished and the image is taken successfully, remove the equipment of the image receptor from the patient's mouth.
Mode function :

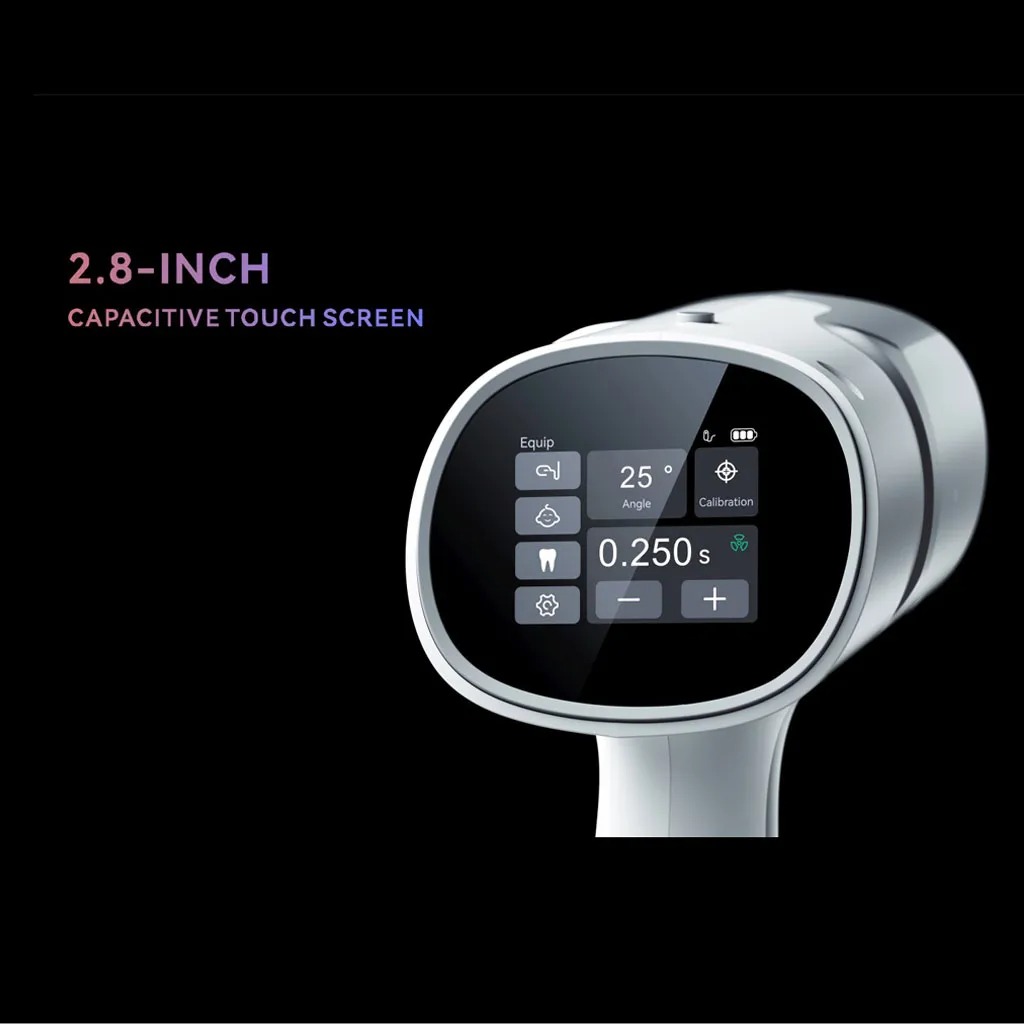

When different modes of the equipment, tooth positions and human bodies are selected, the control panel automatically displays the exposure time.

Equipment Mode

Click the icon of equipment selection in the arrow indication to enter the equipment interface. Select the required equipment of image receptor, and the corresponding area of the equipment is displayed in blue. After the selection is successful, it will automatically exit to the interface, and the device selection icon will change to the corresponding device icon.

Human Body Mode

After selecting the equipment mode, select human body mode. Click the human body selection icon indicated by the arrow to switch back and forth between adult and child modes. Different human body models can be selected according to the age of the patient. After the selection is successful, the human body model area will display the
corresponding options.

Tooth Position Mode

Click the tooth position selection icon indicated by the arrow, enter the interface of the tooth position. Select the tooth type to be shot, and the corresponding area of the tooth is displayed
in blue. After the selection is successful, it will automatically exit to the interface, and the tooth position selection icon will change to the corresponding tooth position icon.

Setting function

Click the setting icon to enter the setting interface. Different languages and factory modes can be set. After the setting is successful, it will automatically exit.

Setting of exposure time

If there is required to change the exposure time, click the “±” button to 10 adjust the exposure time from 0.04 second to 1 second. The exposure time can be adjusted from 0.04 seconds to 1 second in 15 steps.

Exposure :

Long press the exposure switch of Dental X-Ray device to carry out exposure.
Long press the exposure button on the exposure handbrake to carry out exposure. During exposure, the exposure indication light of the exposure handbrake will be on.

Charging :

Connect one end of the charger to the charging port of the equipment and the other end to the power supply of the network (100-240V, 50/60Hz);
When charging, the equipment displays the charging icon, and when charging is finished, the battery is charged fully;
Disconnect the power supply and the charger when the charging is complete;
A single charge takes about 4 hours.
