WOODPECKER EndoMatic(Colrdless Endomotor )

Availability : In stock

Brand : WOODPECKER

Cordless Endo Motor with Combined Length Determination.

₹ 46,500 ₹ 50,000 7% off

EndoMatic is mainly used in Endodontic treatment.
It is a cordlessendo motor with root canal measurement capability.
It can be used asan endo motor for the preparation and enlargement of root canals, or a device for measuring canal length. It can be used to enlarge the canals whilemonitoring the position of the file tip inside the canal.
One of the notable features of the EndoMatic is its cordless and portable design, providing convenience and flexibility during procedures.
The motor handpiece of the EndoMatic is equipped with a lithium battery with a capacity of 3.7V and 2000mAh.
This high-capacity battery ensures long-lasting operation without the need for frequent recharging.
To power the device, a power adapter is included in the package. The input range of the adapter is ~100V-240V, supporting worldwide usage.
It operates at a frequency of 50Hz/60Hz with a maximum input current of 400mA.
The output is DC5V/1A, providing a stable and reliable power supply to the device.
The torque range of the EndoMatic is specified as 0.4Ncm to 5.0Ncm (4mNm to 50mNm).
This wide range allows dental professionals to select the appropriate torque level for different treatment requirements, ensuring precise and controlled root canal preparation.
The device is designed to operate within specific environmental parameters.
The operating temperature should be maintained between 5°C and 40°C to ensure optimal performance.
The relative humidity should fall within the range of 30% to 75%, while the atmospheric pressure should be between 70kPa and 106kPa.
Adhering to these environmental conditions ensures the device functions reliably and consistently.

When used in Integrated mode, it saves time and is very safe due to its safety features like :

Apical Slow Down
Apical Slow Reverse
A new feature of ATR - Adaptive Torque Reverse is added advantage for safety as it runs in continuous rotation but reciprocates once the torque exceeds or the file gets engaged.
Apex Locator accuracy is excellent in any canal condition.
Ultimate Cordless Device with very lightweight (153 gms).

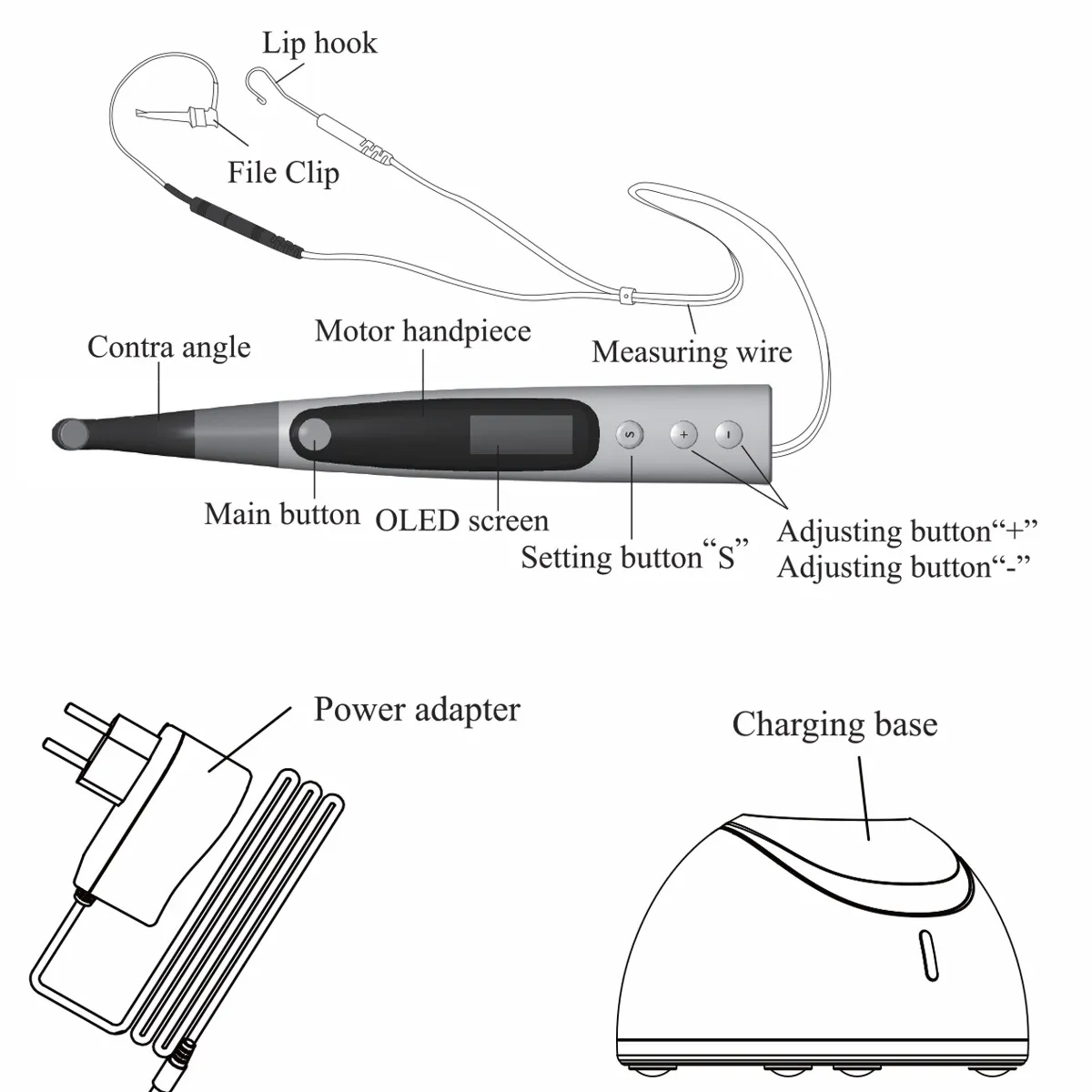

Packaging

1 x Motor handpiece
1 x Contra-angle
1 x Charging base
1 x Measuring wire
1 x Lip hook
1 x File clip
1 x Power adapter
1 x Instruction manual

Direction to Use

Charging the Device

Place the motor handpiece onto the charging base.
Connect the power adapter to the charging base and plug it into a power outlet.
The LED indicator on the charging base will light up, indicating that charging is in progress.
Allow the device to fully charge before first use.

Assembling the Components

Firmly attach the contra-angle to the motor handpiece.
Make sure the contra-angle is securely fastened to prevent movement during operation.

Powering On the Device

Press the power button on the motor handpiece to turn on the device.
The LED display will light up, showing that the device is powered on and ready.

Adjusting Speed and Torque

Use the device’s buttons or controls to adjust speed and torque settings as needed.
Refer to the detailed user manual for instructions on setting specific parameters.

Using EndoMatic for Root Canal Preparation

Select the appropriate file or instrument for root canal work.
Gently insert the instrument into the canal ensuring proper placement.
Activate the device by pressing the foot pedal or designated control.
Carefully maneuver the contra-angle to navigate and prepare the root canal.
Monitor progress and adjust settings if necessary for best results.

Using EndoMatic for Canal Length Measurement

Ensure the built-in electrode of the contra-angle contacts the canal.
Activate the measurement mode on the device.
Slowly insert the contra-angle into the canal until the desired measurement is reached.
Read the canal length on the LED display.

Powering Off the Device

After completing treatment or measurement, press the power button on the handpiece to turn off the device.
Confirm the device is powered off before disconnecting or storing it.
