WOODPECKER D - 600 Ultrasonic Scaler

Availability : Out of stock

Brand : WOODPECKER

Portable Ultrasonic LED Scaler with Scaling, Periodontal, and Endodontic Modes

₹ 36,900 ₹ 40,000 8% off

Woodpecker D600 LED Ultrasonic Scaler is a cutting-edge dental device that delivers exceptional performance and convenience during dental procedures. Equipped with an LED light, this scaler offers superior visibility, illuminating the treatment area and enabling dental professionals to work with precision and accuracy. The bright illumination ensures thorough cleaning and treatment, even in hard-to-reach areas of the mouth. The scaler's water spray function is an invaluable feature that enhances its performance. By providing a continuous stream of water during the procedure, effectively cools the scaler's tip and washes away debris and bacteria. This promotes optimal performance and maintains a clean and hygienic treatment environment. One of the standout features of the Woodpecker D600 LED Ultrasonic Scaler is its adjustable power settings. Dental professionals can easily customize the intensity of the vibrations to suit the specific needs and comfort level of each patient. This flexibility ensures a comfortable and efficient treatment experience, while effectively removing plaque, tartar, and stains from the teeth.

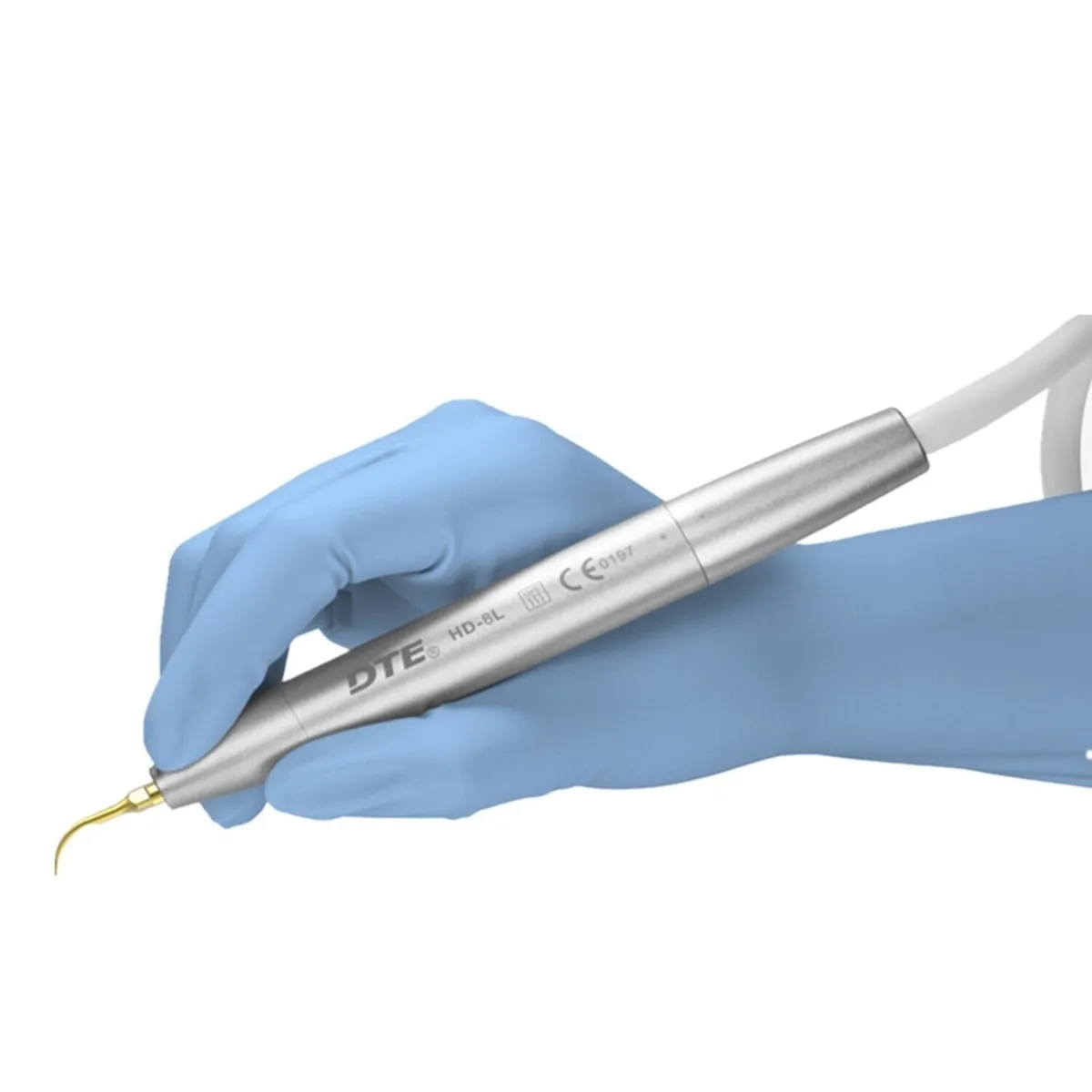

The handpiece of the scaler is designed with convenience and hygiene in mind. It is autoclavable, allowing for easy sterilization and ensuring strict infection control protocols are met. This feature enhances patient safety and provides peace of mind to both dental professionals and patients. Ergonomics play a vital role in the scaler's design. The lightweight construction and ergonomic grip of the Woodpecker D600 LED Ultrasonic Scaler reduce hand fatigue, enabling dental professionals to perform procedures comfortably and effectively for extended periods. This ergonomic design promotes efficient workflow and enhances the overall treatment experience.

Indications:

The Woodpecker D600 LED Ultrasonic Scaler is indicated for the removal of plaque, tartar, and stains from teeth. It is commonly used in routine dental cleanings and periodontal maintenance procedures. The scaler is suitable for use on natural teeth, as well as dental restorations such as crowns, bridges, and veneers.
The scaler can also be used for scaling and root planing procedures to remove bacterial deposits from below the gum line. Additionally, it can be used in implant maintenance procedures to remove plaque and calculus buildup around dental implants.

Packaging

1 x Main unit
1 x Detachable handpiece
1 x Power cord
1 x Footswitch
7 x Scaling tip GD4,GD12,PD1,PD3,PD8,ED62,ED60
1 x Torque wrench
1 x Endo wrench
1 x Water pipe
1 x Quick-connector for Water
6 x Waterproof "O" ring 6pc
10 x Bottle sealed ring
3 x Handpiece lock ring
1 x 700 mL water bottle
1 x lnstruction manual
1 x Warranty card 1
1 x Packing list

Direction to Use

1. Preparation

Before each use, inspect the unit and handpiece for any visible damage or defects.
Ensure that the scaler is properly connected to a power source and turned on.

2. Tip Selection

Choose the appropriate scaling tip based on the procedure:
- Supragingival scaling
- Subgingival scaling
- Implant maintenance
Securely attach the selected tip to the handpiece, ensuring it is tightly fastened before use.

3. Power and Water Adjustments

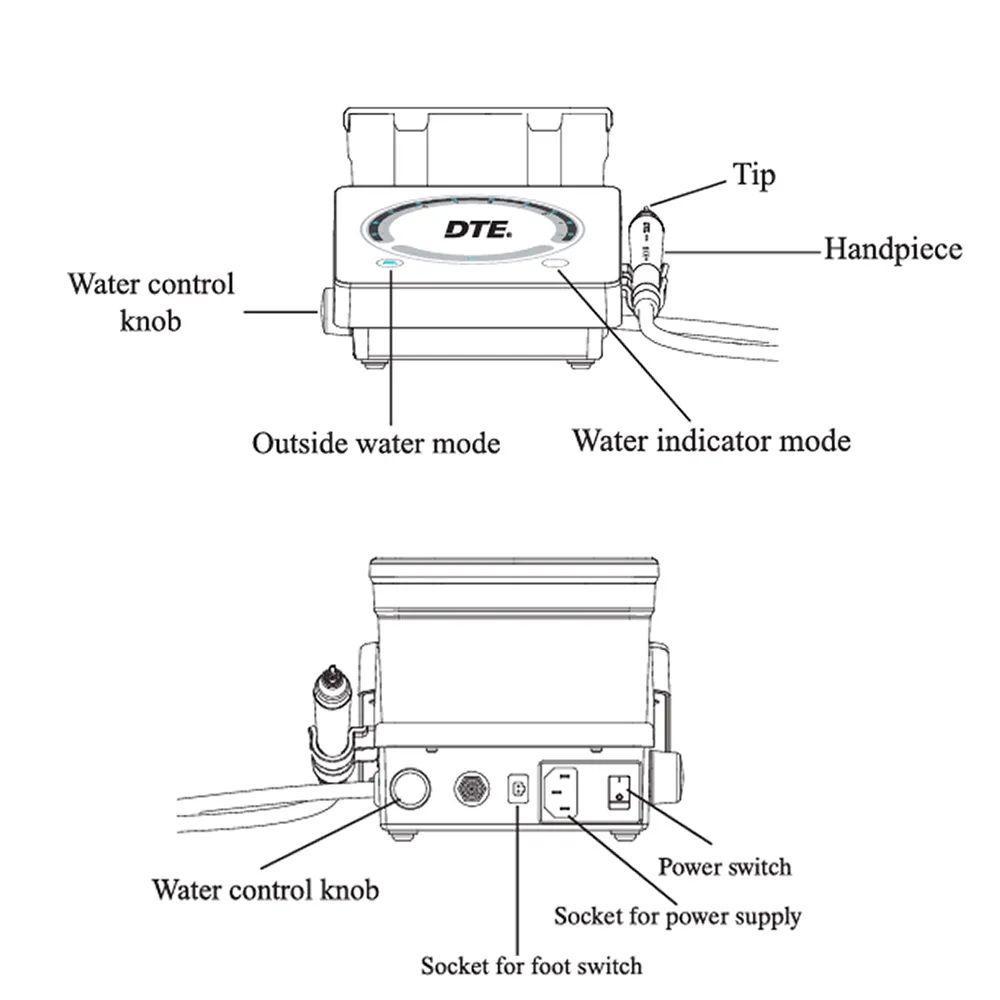

Use the power adjustment knob to set the desired intensity. Power levels range from low to high, depending on the clinical need.
Adjust the water flow rate using the water control knob to maintain patient comfort and ensure effective irrigation during scaling.

4. Tip Positioning and Angulation

Position the tip at a 45-degree angle toward the gum line.
Use moderate pressure with a gentle back-and-forth motion to remove plaque, tartar, and stains.
Avoid excessive pressure or sharp angulation to prevent patient discomfort or enamel damage.

5. Water Spray Function

Activate the water spray function via the water control button on the handpiece.
This helps rinse the tip and flush debris away from the treatment area effectively.

6. Moving Between Teeth

After completing one tooth, reposition the tip for the next tooth.
Adjust the angle and orientation of the tip appropriately for each tooth surface.

7. Completion of Procedure

Once scaling is complete, turn off the scaler and detach the tip from the handpiece.
Follow proper sterilization protocols for tip and handpiece cleaning.

Warranty

Warranty & Service Terms

This product includes a 1-year Manufacturer/Importer warranty covering all parts.
An extended 5-year warranty is provided on the PCB (Power Circuit Board), effective from the date of invoice.
Physical damage is not covered under any circumstances.
All service and warranty claims are to be handled directly by the Manufacturer/Importer.
ORALHEALTHCART is not liable for replacement of the product. The responsibility for any replacement lies solely with the Manufacturer/Importer.
Both ORALHEALTHCART and the Buyer acknowledge that the products purchased and/or used are covered exclusively under the original Manufacturer/Importer’s warranties.
