Wall-Mounted Design:
The unit is installed on a wall with a scissor/hinged articulated arm that allows flexible positioning of the X-ray head around the patient. This space-efficient wall mounting frees up floor area and is suitable for multi-chair or compact dental setups. -
Flexible Scissor Arm:
The articulated arm system makes it easier to move and position the X-ray tube head precisely, improving workflow and facilitating comfort for both patient and operator. -
Exposure Control:
Offers adjustable exposure time (typically around 0.1 s to ~2.99 s), which helps tailor radiation dose to the specific diagnostic need.
Many configurations include a remote exposure control or cordless push-button so the operator can trigger exposure from outside the room for enhanced safety. -
Preset Programs (Optional):
Supports up to 30 preset anatomical exposure programs to standardize common dental views. -
Compatibility with Digital Sensors:
Designed to work with most digital dental sensors (RVG), allowing seamless integration into digital workflows without requiring additional adapters or converters.

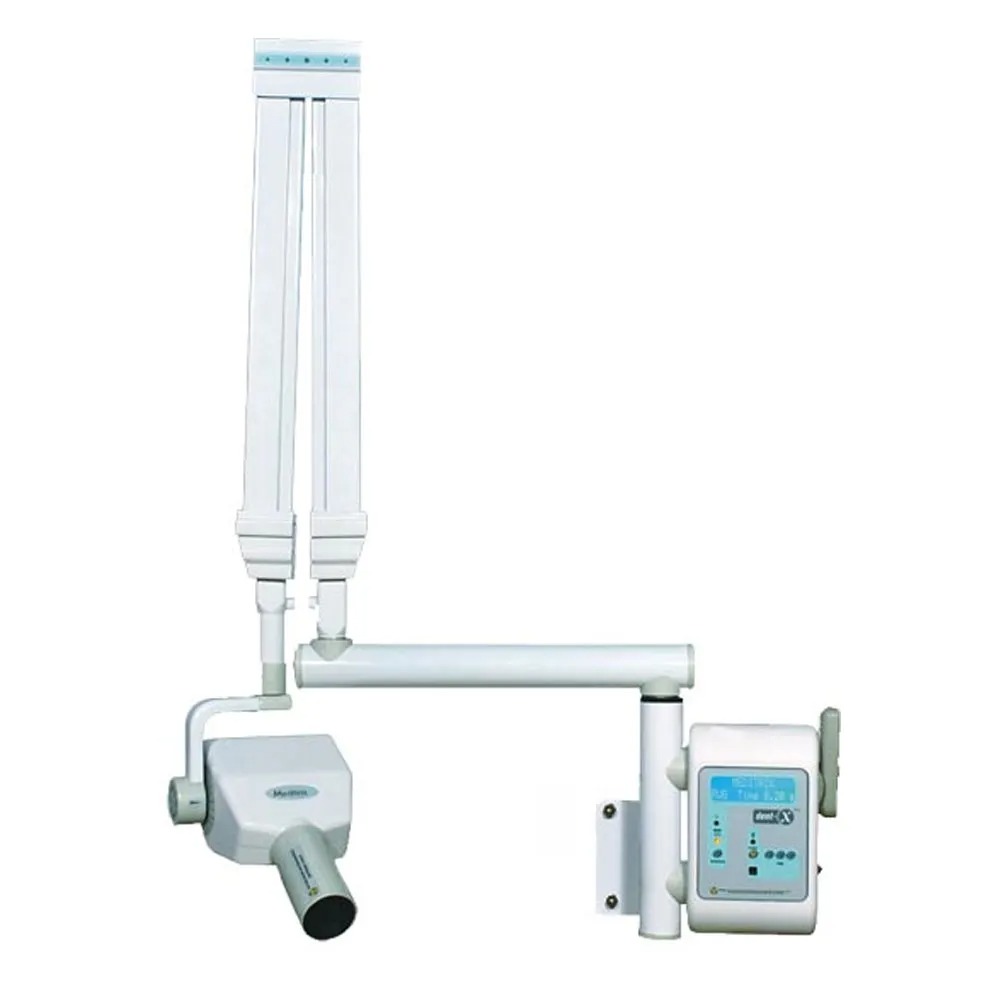

Meditrix X-Ray With Scissor Arm Wall Mounted Model
Availability : In stock
Brand :
Multi Brand
The Meditrix wall-mounted X-ray unit with a scissor arm is a fixed intraoral radiography system designed for dental clinics, hospitals, and diagnostic centers.
₹
29,590
₹
51,840
43% off
Packaging
1unit
Key Specifications
| Specification | Typical Value |
|---|---|
| Power Supply | 230 V ± 10 % AC |
| X-ray Tube Voltage | ~70 kV |
| Tube Current | ~10 mA |
| Focal Spot Size | 0.8 mm × 0.8 mm |
| Focus-to-Skin Distance (FSD) | 20 cm |
| Filtration | ~1.5 mm Al equivalent |
| Exposure Time Range | ~0.1 s to ~2.99 s |
| Mount Type | Wall-mounted with scissor arm |
| Remote Exposure Control | Yes (cordless, optional) |
Warranty
Most sellers include a 1-year manufacturer warranty against defects (terms vary by dealer)
