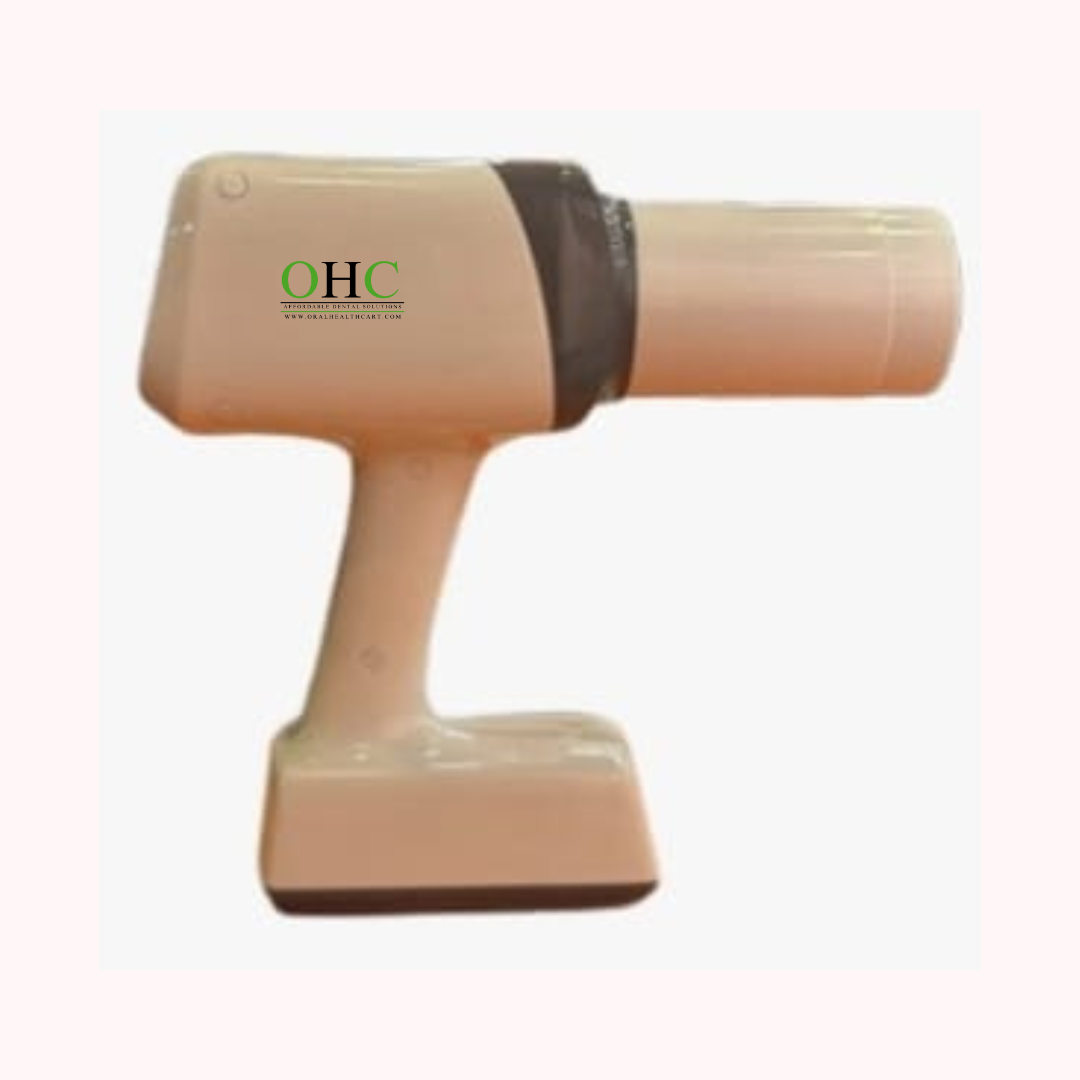

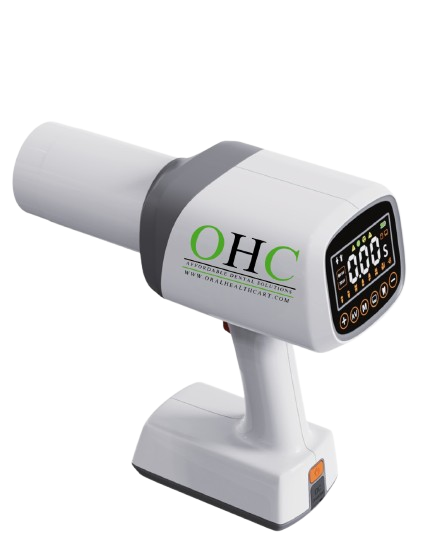

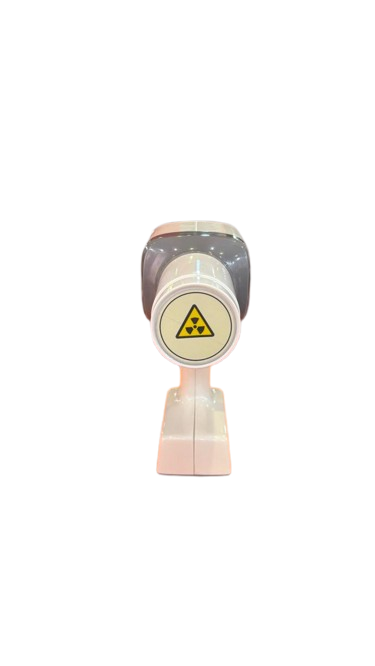

OHC Dental Portable DC X-Ray (36 Months Warranty)

Availability : In stock
Brand : OHC

The OHC Dental Portable DC X-Ray is a compact, high-performance dental radiography unit designed for intraoral imaging. It combines portability with reliable imaging quality, making it ideal for dental clinics, mobile dental units, home visits, or field use where space and convenience matter. This DC-powered unit delivers consistent output and superior image quality with reduced radiation exposure.

Key Features

  • Portable & Lightweight:
    Designed for easy single-handed use and simple setup — perfect for clinics, dental vans, or on-the-go imaging.

  • DC High-Frequency Technology:
    Stable direct current output ensures image consistency and minimal radiation fluctuation — suitable for both film and digital RVG sensors.

  • Rechargeable Battery Operation:
    Built-in Li-ion battery provides cordless convenience, allowing up to ~200 exposures per full charge (typical for this class of units).

  • Adjustable Exposure:
    Exposure times can be selected from very short (e.g., 0.01 sec) up to ~2.0 sec to suit different imaging needs and patient types (adult/child).

  • Compact Focal Spot:
    A small focal point (around 0.8 mm) helps produce sharper intraoral images with good diagnostic detail.

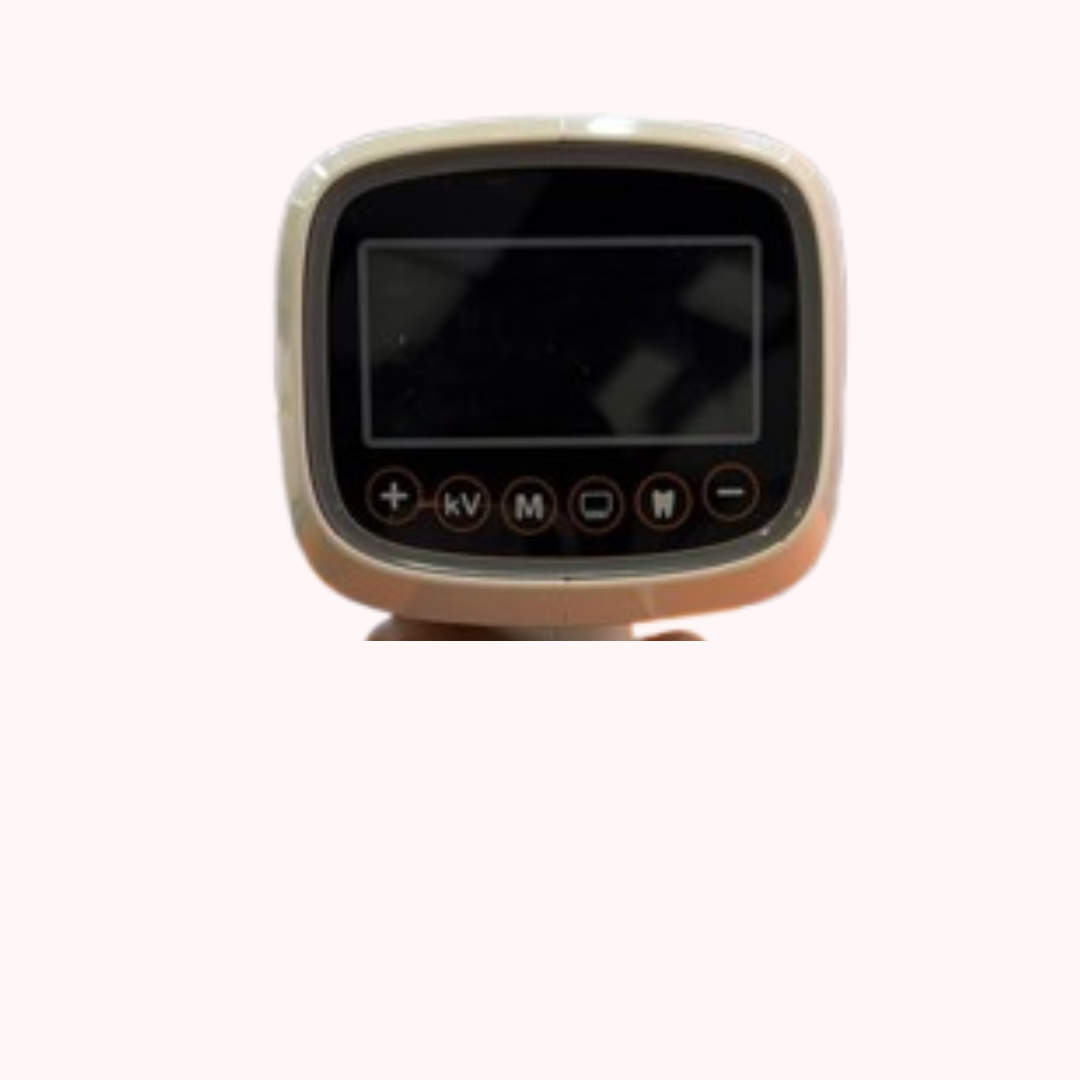

  • User-Friendly Controls:
    Simple exposure controls and modes (film & digital) for ease of operation.

  • Robust & Comfortable Design:
    Ergonomic body with balanced grip and built-in safety features like overheat protection.

54,900 80,000 31% off



  •





    Particulars

    OHC X Ray

    Others X Ray

    1

    Made in

    India

    China

    2

    Manufactured By

    AMSIPL

    Other



    3



    Weight

    1.823 kg / 200 mm

    2.32 kg / 200 mm

    1.732 kg / 150 mm

    2.2 kg / 130 mm

    4

    Size of Display

    70 x 35 mm

    50 x 35 mm

    5

    Display

    Coloured

    Black & White

    6

    Screw Covers

    Available

    Not Available

    7

    Anti Skid Base

    Yes

    No

    8

    Sound Proof Base

    Yes

    No

    9

    Charging Point

    Close

    Open

    10

    Battery Cost

    4000.00+

    10000.00+

    11

    Tube Current

    2.3 mA

    2 mA

    12

    No. of Exposures in one charge

    500

    300

    13

    Function of kV Seletion

    Available

    Not Available

    14

    Function of Receiver Selection

    Available

    Not Available

    15

    Function of Tooth Selection

    Easy

    Difficult

    16

    Cooling Time

    Visual

    Not Visual

    17

    Volume of Touch Button

    Clearly Heard

    Low

    18

    Back Scatter Shield Option

    Available (Optional)

    Not Available

    19

    Remote

    Wireless (Optional)

    Wired

    20

    Remote Range

    50m

    3m

    21

    Tripod Option

    Available (Optional)

    Not Available

    22

    Warranty

    3 Years

    2 Years


Packaging

1 unit

Warranty

3 year

Weight

1.7 Kg Light Weight
