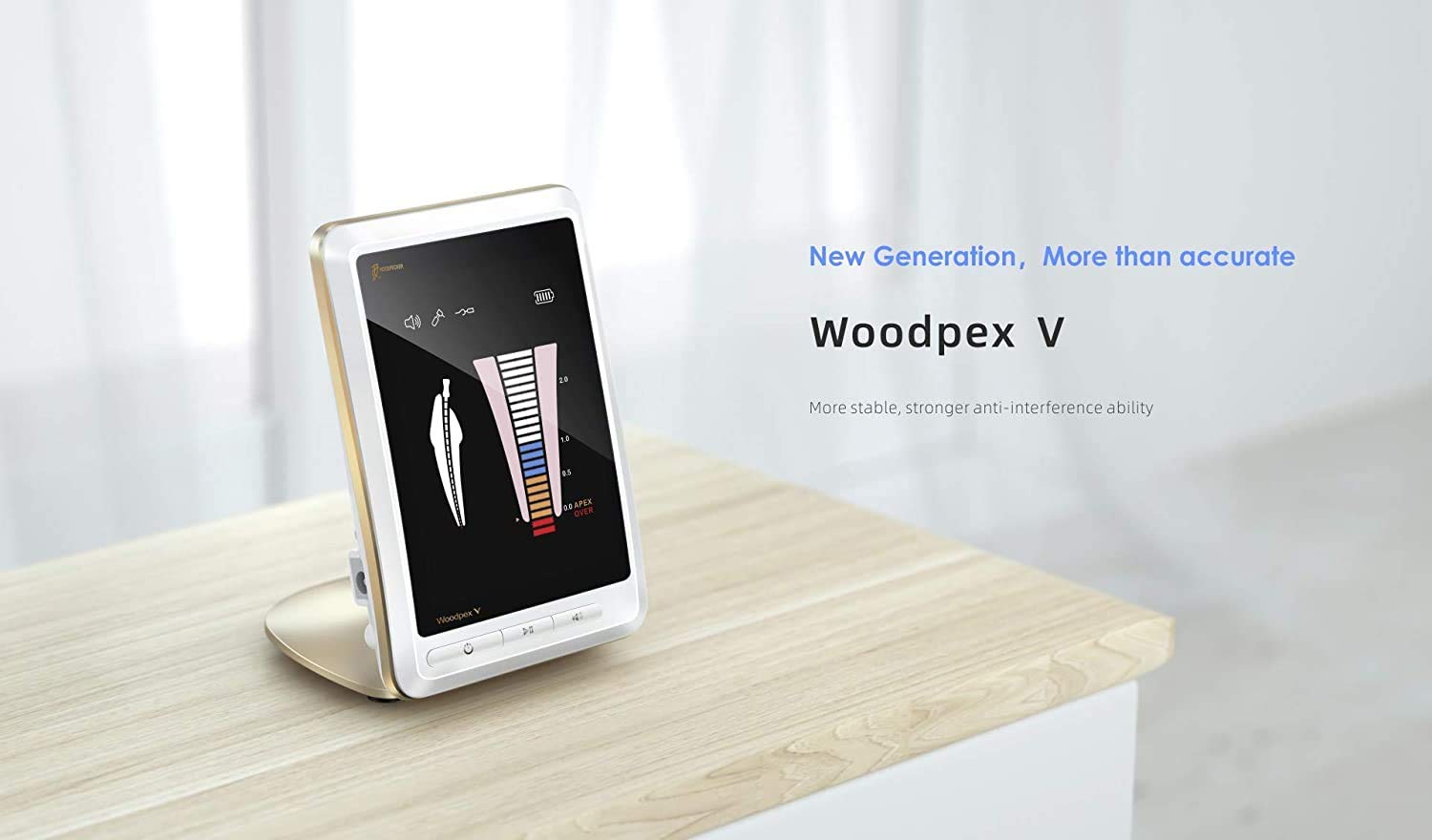

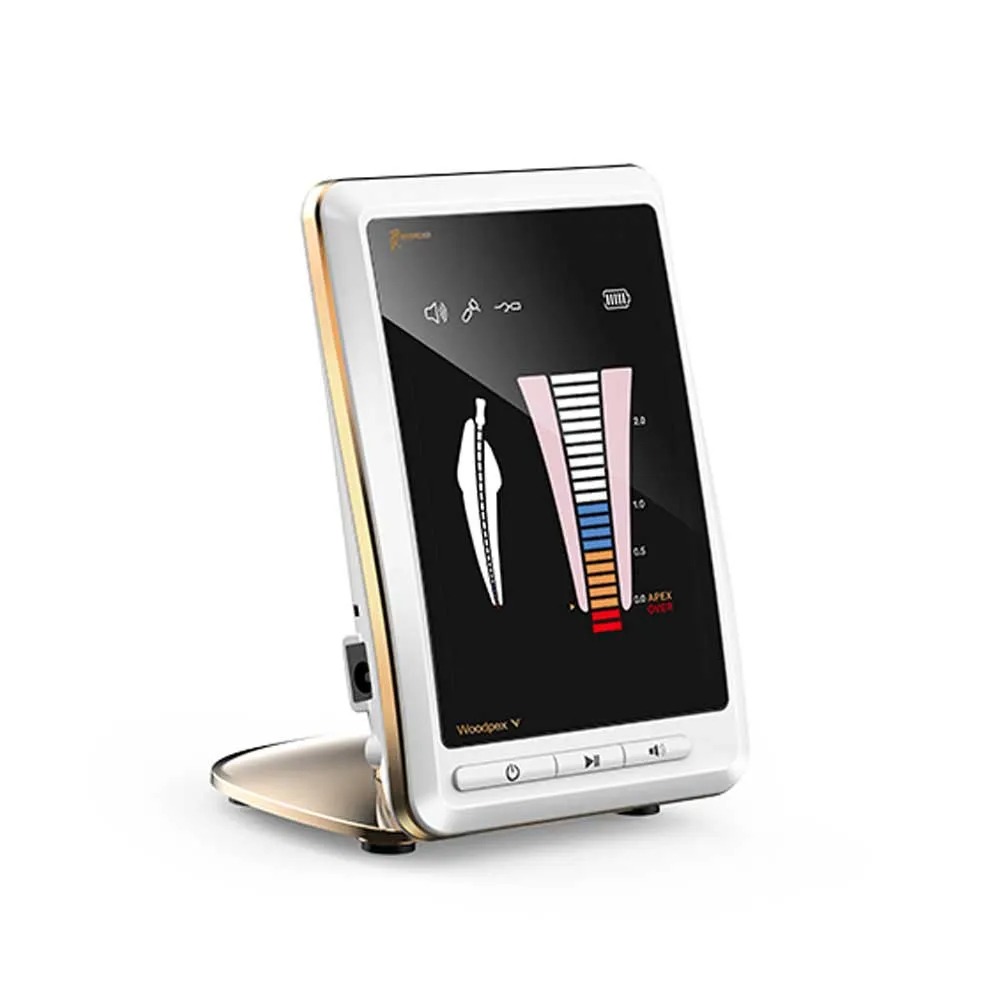

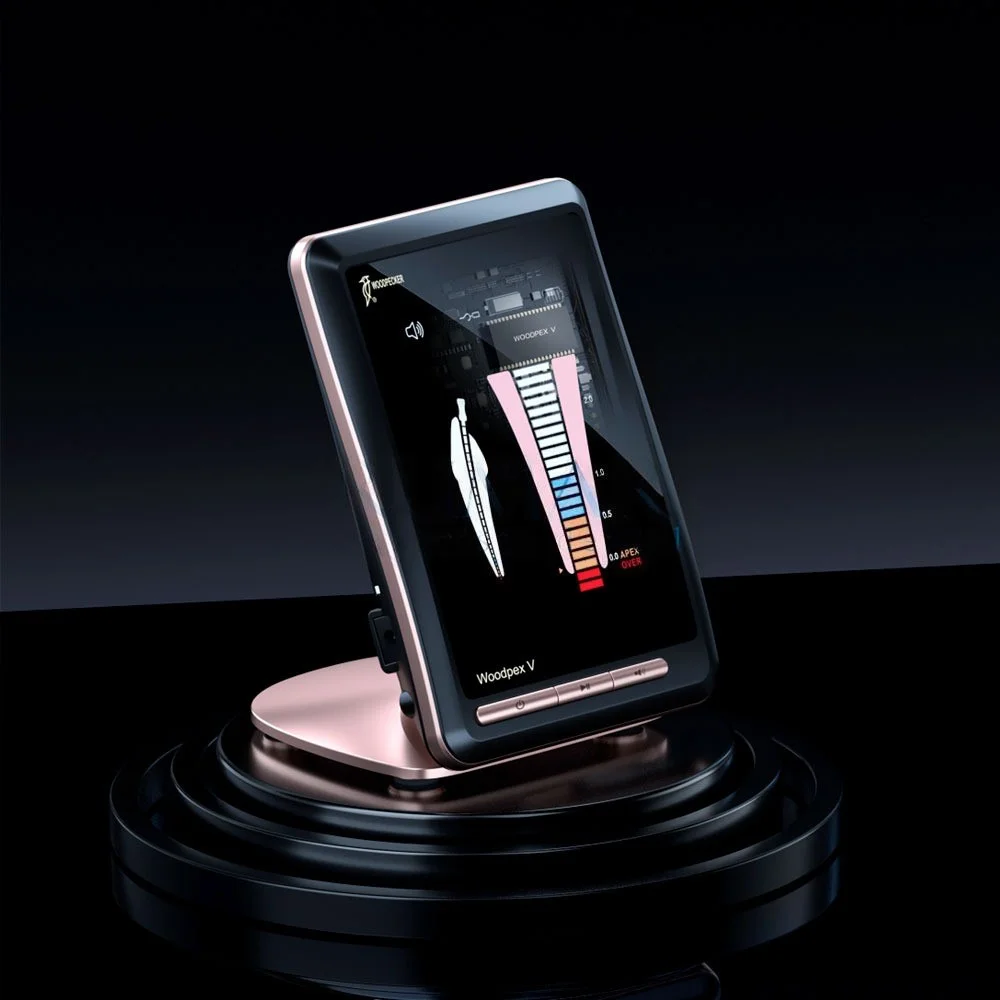

WOODPECKER Woodpex - V ( apex locator )

Availability : In stock

Brand : WOODPECKER

The Woodpex V Is An Advanced Apex Locator Designed To Aid Dental Professionals In Accurately Determining The Working Length Of Root Canals During Endodontic Treatments.

It Integrates Modern Multi-Frequency Measurement Technology To Ensure High Precision And Reliability, Simplifying Root Canal Procedures And Improving Clinical Outcomes.

₹ 9,500 ₹ 10,582 10% off

Woodpecker Apex Locator Woodpex Five Is A Highly Efficient Apex Locator That Aids The Dentist In Accurately Determining The Working Length To Carry Out The Endodontic Treatment.
The Use Of Apex Locators Has Various Advantages Over The Conventional Methods Of Working Length Determination And Locating The Apical Constriction.
This Fifth-Generation Apex Locator Is Equipped With A Clear Bright LCD That Displays A Clear Image And Different Colors To Indicate The File Trajectory.
The Working Of The Device Is Based On Advanced Multiple Frequency Network Impedance Measurement Technologies.
Moreover, Automatic Calibrating Ensures That The Measurements Are Accurate.
The Parts Of The Woodpex V Standard Apex Locator Are Autoclavable, Thereby Making It Possible To Reduce The Risk Of Cross-Infection. The Rechargeable Battery Incorporated In The Device Enhances Ease Of Use And Eliminates The Need For Replacement Of The Battery Repeatedly.
The Display Can Be Folded To Facilitate Better Viewing Most Distinguishing Feature Of Woodpecker Apexlocator V Is It Can Be Directly Integrated With Woodpecker Endomotor E-Com.
Please Note: Accuracy In Readings For Apex Locators Is Claimed To Be 97.7% Accurate. Readings May Vary From The Conventional Method Of Working Length Determination (Radiographic Method) & May Fluctuate In Cases Where The Precautions (Recommended In User Manual) Are Not Followed.

Packaging

1 x Main Unit
1 x Measuring Wire
2 x File Clip
2 x Lip Hook
2 x Measuring File
1 x Adapter
1 x Tester
1 x Battery
1 x Instruction Manual
1 x Qualified Certificate
1 x Warranty Card
1 x Packing List

Direction to Use

1. Preparation

Ensure the device is fully charged or connected to a power source.
Confirm the file clip, lip hook, and file probe are properly attached and autoclaved for sterilization.
Check the LCD screen for cleanliness and good condition to ensure clear visibility.

2. Patient Preparation

Inform the patient about the procedure and obtain consent.

Verify the patient does not have:

A pacemaker or other implanted electrical devices

Metal allergies or any contraindications noted in the user manual

Administer appropriate anesthesia before beginning the endodontic treatment.

3. Device Setup

Turn on the Woodpecker DTE DPEX V Apex Locator by pressing the power button.

Allow the device to complete its initialization process.

Adjust the screen brightness if necessary for clear display visibility.

4. Apical Positioning

Select the appropriate file size for the root canal.

Carefully insert the file into the root canal until the tip reaches the apical constriction.
Attach the file clip securely to the file handle and connect it to the device.
Place the lip hook on the patient’s lip to stabilize the connection.

5. Measurement Procedure

Monitor the real-time display on the LCD screen showing the file’s movement inside the canal.
Listen to the audio signals emitted during measurement.
Observe changes in sound and display; these indicate the file’s position within the root canal.

6. Reading and Recording

When the device indicates the file tip has reached the apical constriction, note the measurement displayed.
Gently remove the file from the canal, minimizing disturbance to the measurement.
Record the working length for reference in the ongoing endodontic treatment.

7. Post-Procedure Care

Clean and disinfect the file clip, lip hook, and file probe according to sterilization protocols.
Turn off the apex locator.
Store the device safely for future use.

Warranty

Manufacturer/Importer Warranty: 1 year warranty applicable on the entire product, including the PCB (Power Circuit Board), effective from the date of invoice.
Service & Warranty Handling: All warranty claims and servicing are managed directly by the Manufacturer/Importer.
On-Spot Service: Currently, on-spot service is available only in the Delhi/NCR region.
ORALHEALTHCART will not be liable for product replacement or repair; responsibility rests solely with the Manufacturer/Importer.
