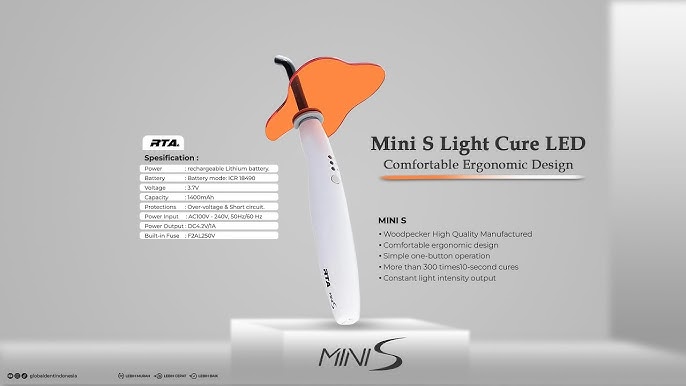

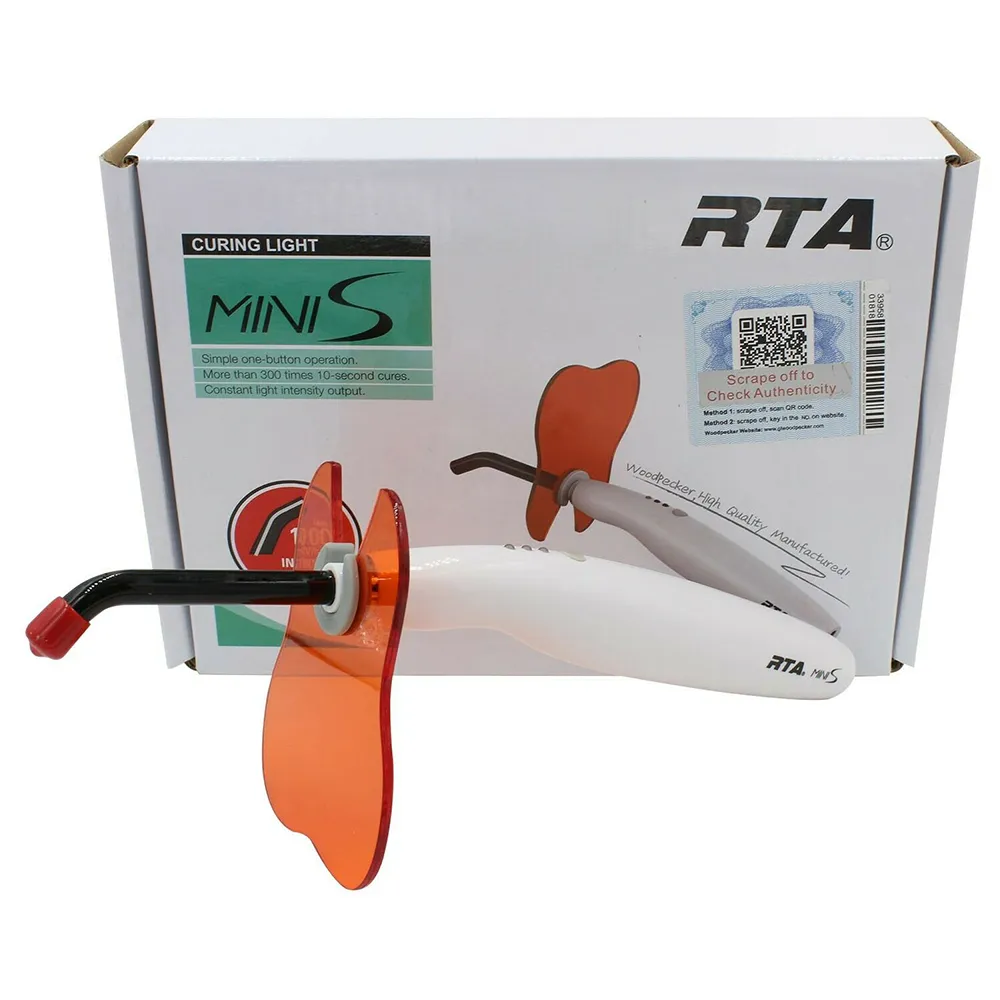

WOODPECKER Mini - S (Light Cure)

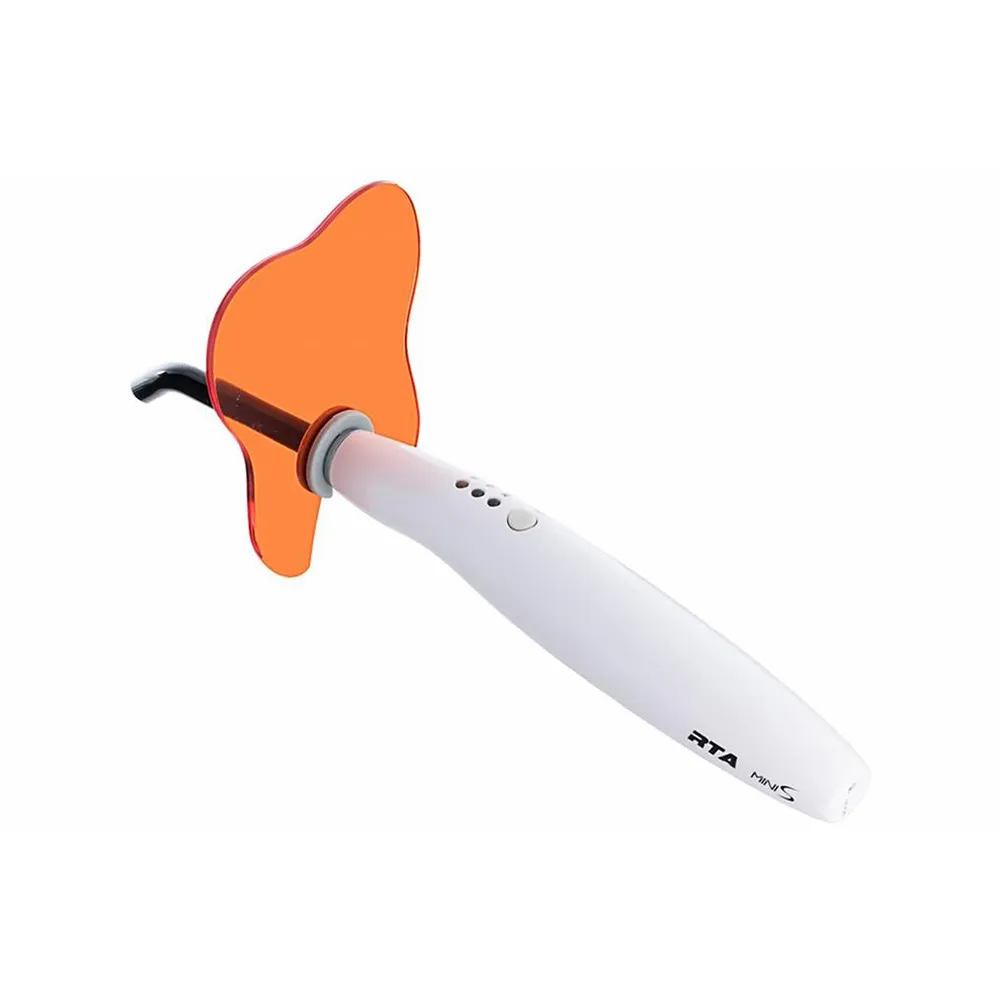

1. 1 × Main Unit (LED curing light handpiece)

2. 1 × Optical Fiber Rod

3. 1 × Light Shield

4. 1 × Charging Base

5. 1 × Adapter

6. 1 × User Manual

1. Preparation

1. Ensure the device is fully charged before first use (charge for 4 hours).

2. Clean and inspect the optical fiber for clarity and damage.

2. Assembly

1. Attach the optical fiber to the handpiece.

2. Fit the orange light shield over the fiber to protect the eyes.

3. Mode Selection

1. Press the mode button to toggle between:

   1. Full Power: Constant maximum light intensity.

   2. Ramping: Gradual increase in light intensity.

   3. Pulse: Intermittent flashes for better control over heat-sensitive cases.

4. Time Setting

1. Press the time button to choose from available curing times:

2. 5, 10, 15, or 20 seconds

• A beep indicates the start of curing; a second beep signals the end.

5. Curing Procedure

1. Aim the curing light at the resin surface (within 1–2 mm).

2. Press the power button once to begin curing.

3. Do not look directly at the light. Protective glasses are recommended.

6. Post-Use

1. Wipe the optical fiber with a soft, alcohol-dampened cloth.

2. Place the handpiece on the charging base if needed.

 Battery & Charging

1. Battery Type: Rechargeable lithium-ion

2. Battery Life: ~400 uses per full charge

3. Charging Time: ~3–4 hours

4. Low battery is indicated by a flashing display or a triple beep.

1. 12-month warranty on all parts (excluding physical damage)

2. 5-year warranty on PCB (Power Circuit Board)

3. Warranty and service are handled directly by the manufacturer/importer.
