	Memory Programs: Up to 9 programmable settings for speed, torque, and other parameters.
-
	Overload Protection: Automatic shutdown to prevent motor damage.
-
	Real-Time Monitoring: Displays actual RPM and torque during operation.
-
	Auto Calibration: Ensures optimal performance.
-
	Ergonomic Foot Controller: Designed for ease of use during procedures.
-
	Handpiece Compatibility: ISO 3964 standard E-type connection.

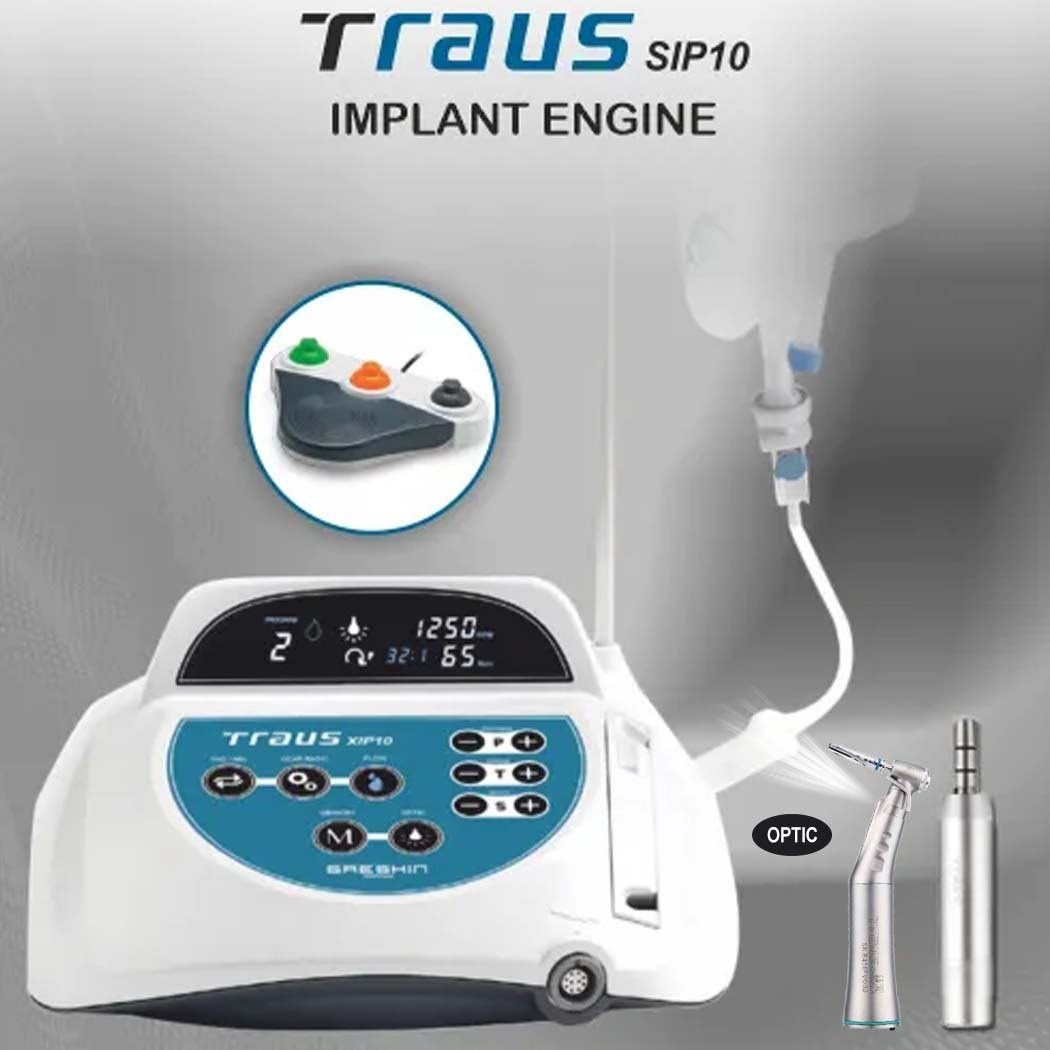

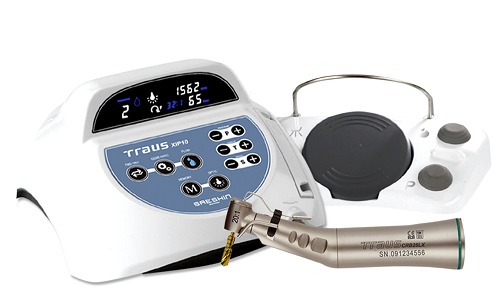

SAESHIN Traus SIP10 Implant Engine - Optic (Physiodispenser)
-
	The Saeshin Traus SIP10 Implant Engine is a high-performance brushless micromotor system designed for dental implantology.
-
	It offers advanced features to enhance precision and efficiency during surgical procedures.
Packaging
-
	1 X Optic H/p
-
	1 X SIP 10 Controller
-
	1 X SIP 10 Foot Padal
-
	1 X Optic BLDC Motor
Key Specifications
-
	Motor Type: Brushless DC (BLDC)
-
	Speed Range:
-
	20:1 Gear Ratio: 30–2,000 RPM
-
	32:1 Gear Ratio: 20–1,250 RPM
-
	Torque Output:
-
	20:1 Gear Ratio: 5.0–55 N·cm
-
	32:1 Gear Ratio: 5.0–65 N·cm
-
	Gear Ratios Supported: 1:5, 1:4, 1:1, 16:1, 20:1, 27:1, 32:1, 64:1
-
	Optic Function: Available (LED illumination)
-
	Irrigation Pump: Up to 90 mL/min
-
	Control Unit Dimensions: W233 x D269 x H120 mm
-
	Weight: Approximately 6.2 lbs (2.8 kg)
Warranty
-
	1 year from the date of purchase (may vary slightly by distributor or region).
-
	Coverage Includes:
-
	Defects in materials or workmanship
-
	Malfunctions occurring under normal usage conditions
-
	Issues with the motor, control unit, or foot pedal, depending on model-specific agreements
-
	Covered Components:
-
	Control console (SIP10 unit)
-
	Brushless motor (MBP10SL)
-
	Internal circuitry
-
	Foot controller (limited coverage)
-
	Irrigation pump (manufacturer defects only)
-
	Physical damage due to misuse, dropping, or liquid intrusion beyond sterilization tolerance
-
	Improper maintenance or cleaning
-
	Unauthorized repairs or tampering
-
	Accessories such as handpieces unless specifically stated
-
	Natural wear and tear (e.g., tubing, o-rings, seals)
