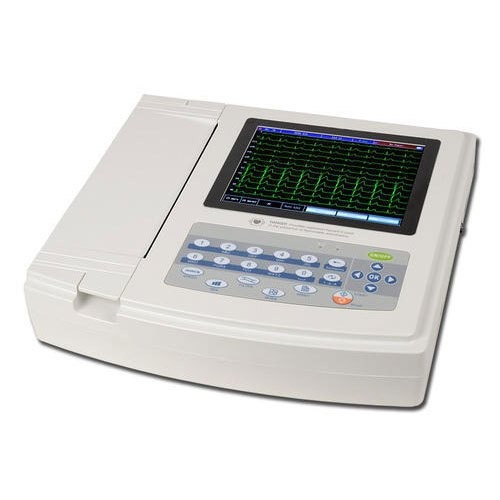

Contec 12-Channel ECG Machine (1200G)

Availability : In stock

Brand : Multi Brand

The Contec ECG1200G is a medical-grade device intended for use by qualified healthcare professionals only. It is not designed for home or self-diagnosis. Clinical decisions should always be made by a certified physician based on full medical evaluation. improper use or handling may affect device performance or patient safety

₹ 56,000 ₹ 75,000 25% off

Lead System: Standard 12-lead ECG with floating input and defibrillation protection
Frequency Response: 0.05Hz-150Hz for wide signal coverage
Input Impedance: 250ΜΩ | CMRR: >60dB (or >100dB with filter)
Polarization Voltage Tolerance: ±500mV | Noise Level: $15µVp-p
Filters: AC, baseline drift, and EMG (25Hz/35Hz) interference filters
Paper Format: 210mm x 20m high-speed thermal paper
Recording Modes: Auto, Rhythm, and Manual
Paper Speeds: 5 to 50 mm/s (adjustable)
Sensitivity Options: 2.5, 5, 10, 20, 40 mm/mV (±5% error)
Measurements: HR, PR, QRS, QT/QTC, Axes, and wave amplitudes
Power Supply: AC 100-240V, 50/60Hz or DC 14.8V battery (3700mAh)
Battery Backup: Rechargeable lithium battery for portable use
Dimensions: 334mm x 320mm x 85mm

Packaging

1 x Contec 1200G ECG Machine
1 x ECG Cable
1 x Bulb Electrode
1 x Clamp Electrode
1 x Power Cable
1 x Earthing Cable
1 x User Manual

Key Specifications

Safety Type Class I, Type CF
Lead Standard 12 leads
Input way: Floating and defibrilation protection
Patient leak current <10µA
Sampling rate 1000Hz
A/D conversion 12bit
Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
CMRR 60dB, 100dB( Add filter)
Enduring polarization voltage 300mV
Noise level 15µVp-p
EMG interference filter 25/35Hz (-3dB)
AC filter 50/60Hz (20dB)
Recording way Thermal printing system
Recording paper 210mm(W)×20m(L)
Sensitivity 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV , Auto.
Paper speed:
Auto-record: 25mm/s, 50mm/s
Rhythm record:25mm/s, 50mm/s
Manual-record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
Freeze record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
AC 110V/220V, 50Hz/60Hz
DC 14.8V, 3700 mAh rechargeable lithium-polymer battery
Size: 340mm(L)×320mm(W)×85mm(H)
PC connectivity is optional

Features

Lead System: Standard 12-lead ECG with floating input and defibrillation protection
Frequency Response: 0.05Hz-150Hz for wide signal coverage
Input Impedance: 250ΜΩ | CMRR: >60dB (or >100dB with filter)
Polarization Voltage Tolerance: ±500mV | Noise Level: $15µVp-p
Filters: AC, baseline drift, and EMG (25Hz/35Hz) interference filters
Paper Format: 210mm x 20m high-speed thermal paper
Recording Modes: Auto, Rhythm, and Manual
Paper Speeds: 5 to 50 mm/s (adjustable)
Sensitivity Options: 2.5, 5, 10, 20, 40 mm/mV (±5% error)
Measurements: HR, PR, QRS, QT/QTC, Axes, and wave amplitudes
Power Supply: AC 100-240V, 50/60Hz or DC 14.8V battery (3700mAh)
Battery Backup: Rechargeable lithium battery for portable use
Dimensions: 334mm x 320mm x 85mm
