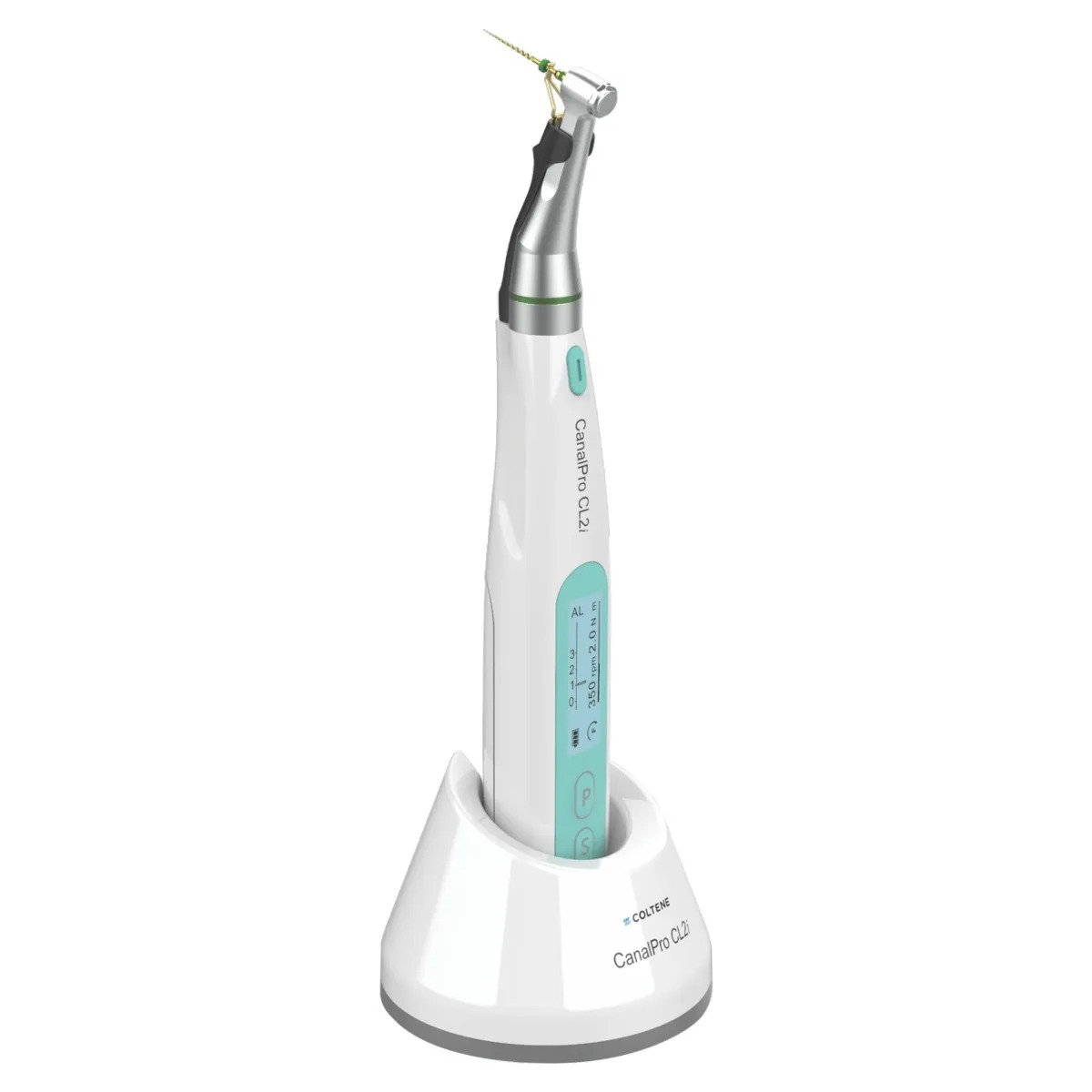

Coltene Canal Pro CL2i Endomotor / Cordless Endo Motor without Apex Locator

1. 1 x Contra-angle

2. 1 x Handpiece

3. 1 x Charger/ Adapter

4. 1 x Charger Base

5. 2 x LED

6. 1 x Dual-mode wire

7. 1 x File Clip

8. 4 x Lip Hooks

9. 5 x Rubber rings for Contra-angle

1. Optic Cordless and Light-weight handpiece

2. Integrated Apex Locator

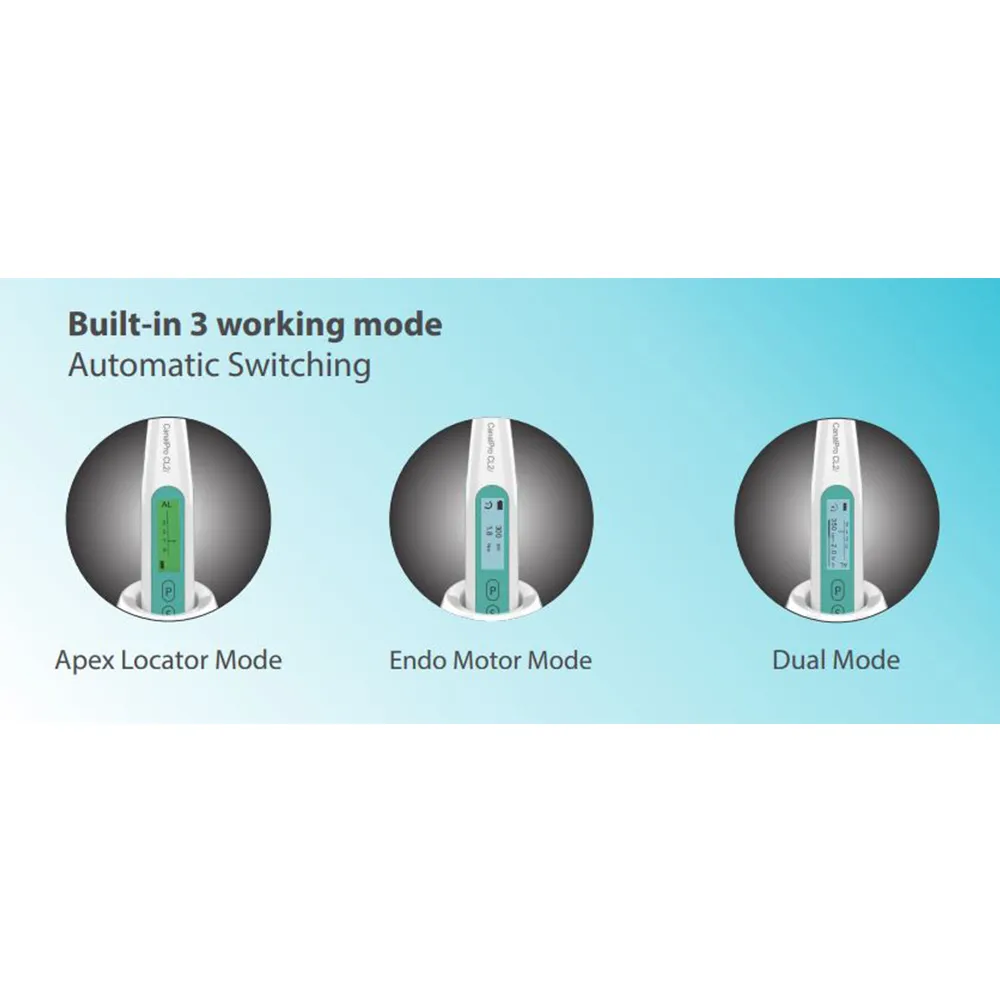

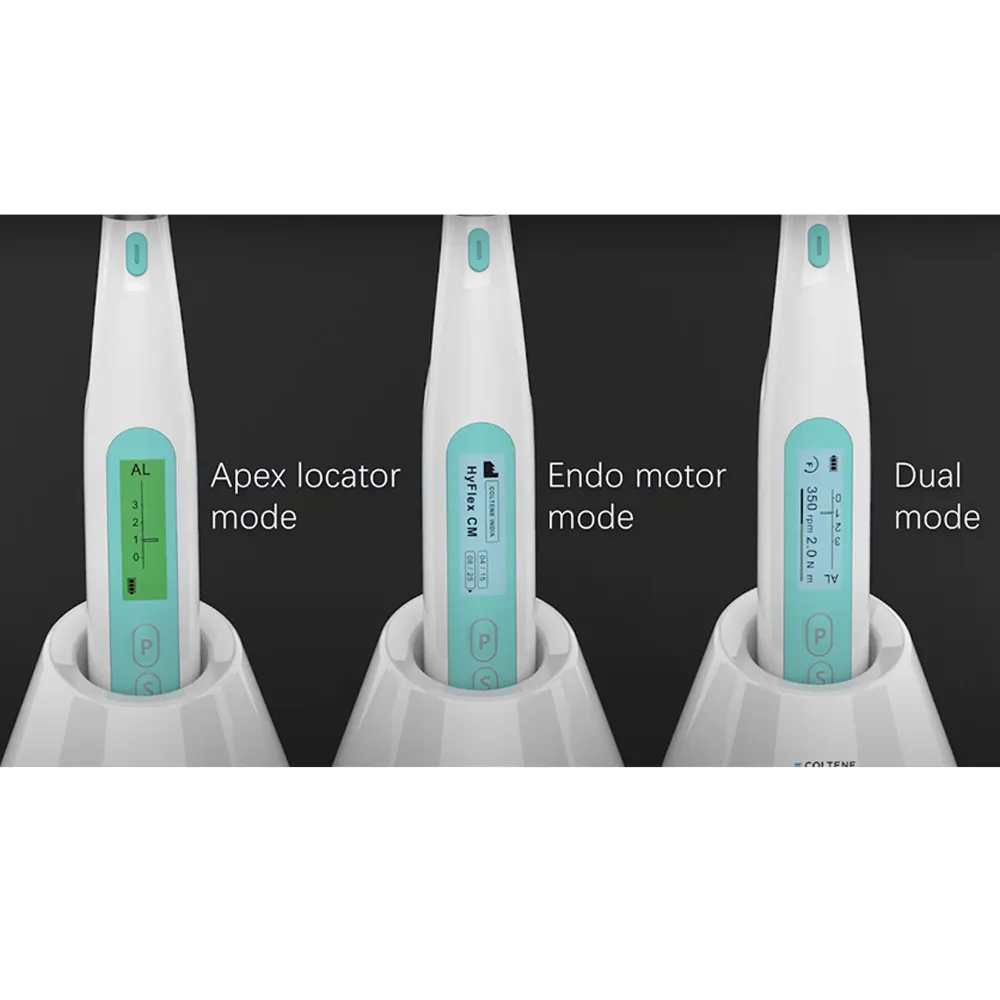

3. Three modes : Endomotor mode, Apex Locator mode, Dual mode

4. In-Built programs for HyFlex CM, HyFlex EDM, GenENDO

5. User choice programs

6. Forward Reverse Reciprocation program

7. Choice of changing the reciprocating angle

8. Intelligent unique Auto-Deceleration in apical region

9. Two types of Auto Reverse : Torque auto-reverse as well as Apex Setting auto-reverse

10. Real-Time Visual and Audio indication of the file location in the canal

11. Small head size and powerful LED

12. Large Battery Capacity

13. Gyroscopic rotation of head

14. Quickly customizable for Right handed or Left handed operator

15. Torque and speed setting incorporated for almost all types of files in the market

1. Detachable: mini contra-angle, multi-angle

2. Torque: Up to 5.2 Ncm

3. RPM: Up to 600rpm

Multiple Reciprocation combinations available:

Forward Reciprocation

1. +150 -30

2. +210 -60

3. +270 -90

Reverse Reciprocation

1. +30 -150

2. +60 -210

3. +90 -27

Preparation:

1. Ensure the device is charged or connected to a power source.

2. Attach the appropriate contra-angle to the handpiece if needed.

Selection of File:

1. Choose the appropriate endodontic file for the procedure.
2. Ensure the file is properly sterilized.

Power On:

1. Turn on the device using the power button.

Select Mode:

1. Choose the desired operating mode: Endomotor mode, Apex Locator mode, or Dual mode.

Insertion of File:

1. Insert the selected endodontic file into the canal.
2. The device may have an auto-start function when the file is inserted.

File Manipulation:

1. Manipulate the file using subtle and delicate movements, allowing the motor to alternate between forward and reverse rotation.

Monitor Display:

1. Monitor the LCD for real-time visual and audio indications of the file location in the canal.

Auto Stop Feature:

1. Take advantage of the auto-stop safety feature. The motor should stop or reverse rotation when the file reaches the end of the working length.

Reciprocation Settings:

1. Adjust reciprocation settings if needed, considering the type of file and the specific requirements of the procedure.

Switch to Apex Locator Mode:

1. If necessary, switch to the Apex Locator mode for precise measurement of the working length.

Monitor Apex Locator Display:

1. Observe the display to determine the position of the file tip inside the canal.

Auto-Reverse Features:

1. Utilize auto-reverse features, such as torque auto-reverse and apex setting auto-reverse, for enhanced safety.

Power Off:

1. Turn off the device after completing the procedure.

Cleaning and Maintenance:

1. Clean and sterilize the handpiece and contra-angle according to the manufacturer's instructions.
